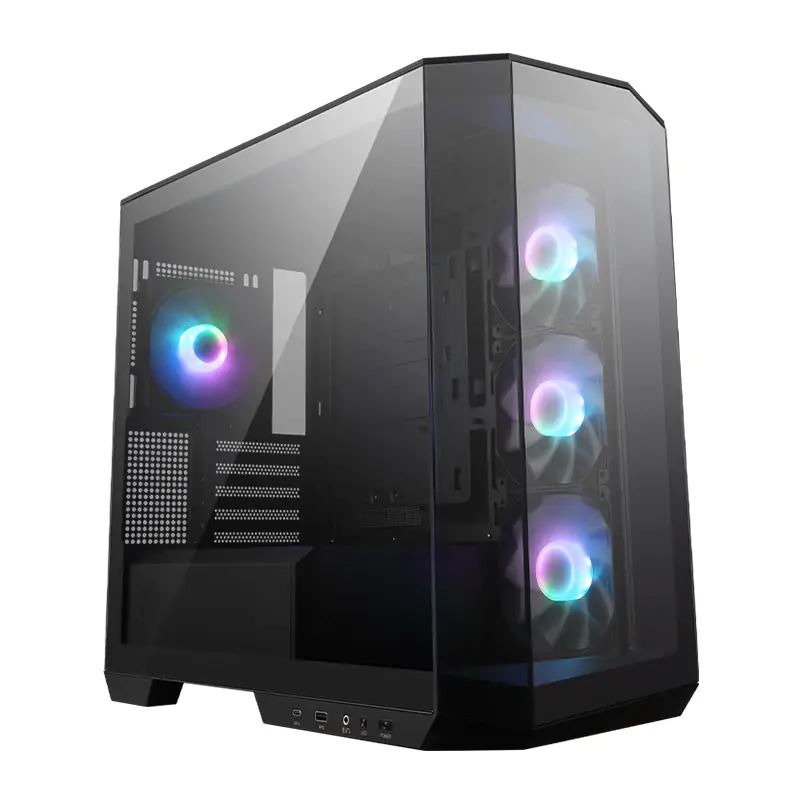

MSI MAG PANO M100R PZ BLACK Micro ATX Case - Black (MAG PANO M100R PZ)
Micro‑ATX tower (440 × 235 × 405 mm) with 5 expansion slots, supports M‑ATX/ITX, GPU up to 390 mm, CPU cooler 175 mm, PSU 200 mm. Pre‑installed 3 side + 1 rear ARGB 120 mm fans. USB 3.2 Gen 1‑A, Gen 2x2‑C, audio, LED switch.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Form factor
Micro- ATX Tower
I/O ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive mount support
1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Case expansion slots
5
Maximum PSU length
200 mm / 7.87 inches
Maximum GPU length
390 mm / 15.35 inches
*Support horizontal installation only.
Maximum CPU cooler length
175 mm / 6.9 inches
Lighting
Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
Power supply
ATX
Fan size support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-install fan
Side: 3 x 120 mm
Rear: 1 x 120 mm
Radiator layout
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Support MB form factor
M-ATX (Back-connect supported) / ITX
Dimension
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
Connection
1x USB 3.2 Gen 2x2 Type-C
1x USB 3.2 Gen 1 Type-A
Mic In/ Audio Out
LED Switch Button
Power Button
Product Name:
MSI MAG PANO M100R PZ BLACK Micro ATX Case - Black (MAG PANO M100R PZ)
