Home > PC Parts > Computer Parts > Cases > NZXT Cases > NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)

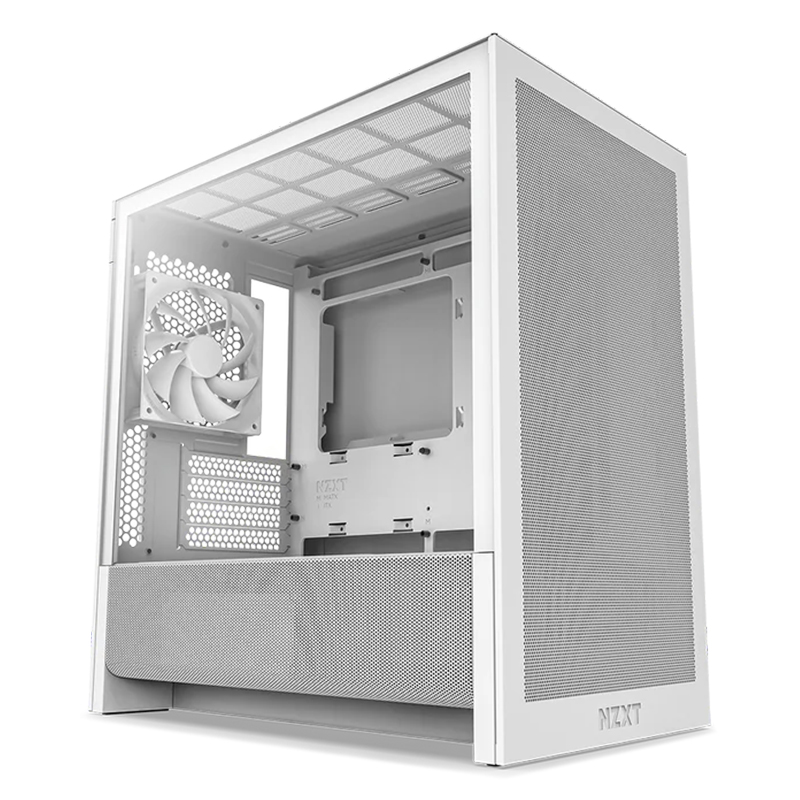

NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)

NZXT H3 Flow micro‑ATX case in white features tempered glass side, SGCC steel, supports up to 377 mm GPUs, 170 mm CPU coolers, front/top radiators (280 mm/240 mm), 2×120 mm front, 2×120 mm top, 1×120 mm rear fan.

$89.0

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 21hrs and 35mins

- +

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

Product Name:

NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)
Model Number:

CC-H31FW-01
Brand:

NZXT
Warranty Period:

2 Year

Description

SPECIFICATIONS:

DIMENSIONS
Height (with feet)	400 mm (15.75 in)
Width	225 mm (8.86 in)
Depth	389 mm (15.31 in)
Volume	35.0 L
Weight	4.8 kg (10.58 lb)
GENERAL
Enclosure Type	Micro-ATX Case
Motherboard Compatibility	Micro-ATX, Mini-ITX
Supports Rear-Connecting Motherboard (BTF, Project Zero)	Yes (Micro-ATX)
Materials	SGCC steel, clear tempered glass
CLEARANCE
CPU Cooler Height	170 mm
GPU Length	Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)
PSU Length	Up to 185 mm
Cable Routing Space	Up to 31.5 mm
Front Radiator + Fan Thickness	Up to 63 mm
Top Radiator + Fan Thickness	Up to 70 mm
FRONT I/O PORTS
USB 3.2 Type-A	1
USB 3.2 Gen2x2 Type-C	1
EXPANSION SLOTS
Standard	4
Vertical	0
DRIVE BAYS
2.5"	1+2
3.5"	1
FAN SUPPORT
Front	2 x 120 mm / 2 x 140 mm
Top	2 x 120 mm / 2 x 140 mm
Bottom	2 x 120 mm
Rear	1 x 120 mm (1 x F120Q (CV) included)
RADIATOR SUPPORT
Front	Up to 280 mm
Top	Up to 240 mm
FAN SPECS
Model	F120Q (CV)
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static Pressure	1.05 mmH2O
Noise	24.1 dBA
Fan Connector	3-pin
