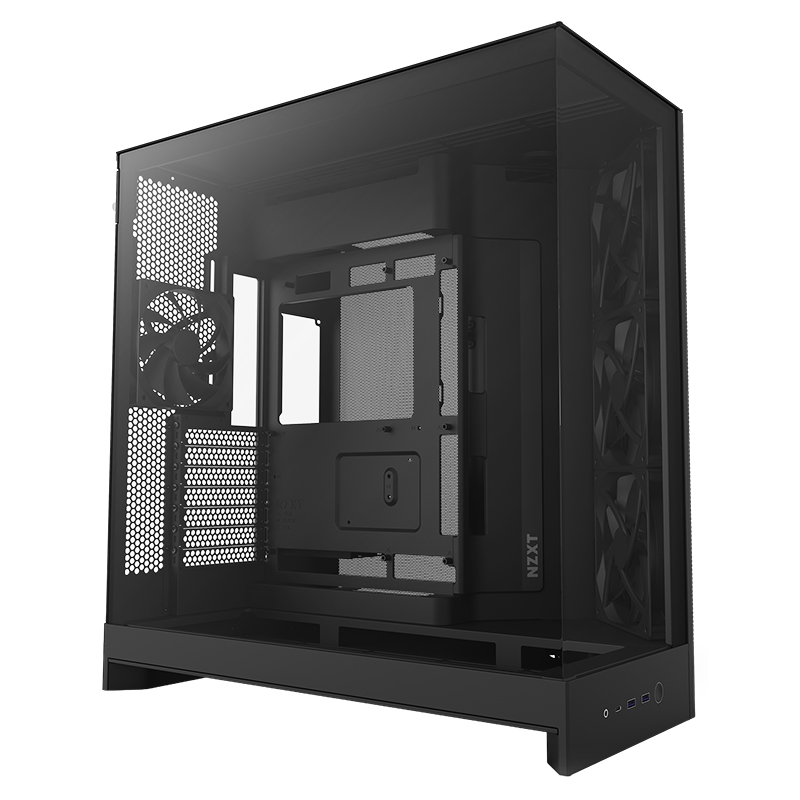

NZXT H9 Flow Mid-Tower ATX Case (CM-H92FB-01)

Mid‑tower H9 Flow case in SGCC steel with tinted tempered glass. Supports E‑ATX/ATX/M‑ITX/ITX, 7 slots, 4+2 2.5″ & 2 3.5″ bays. Includes 3 × 140 mm F140Q and 1 × 120 mm F120Q fans. Front I/O: 2 USB‑A, 1 USB‑C, headset jack. Max GPU 459 mm, CPU cooler 165 mm.

NZXT H9 Flow Mid-Tower ATX Case (CM-H92FB-01)
  • NZXT-Cases-NZXT-H9-Flow-Mid-Tower-ATX-Case-CM-H92FB-01-6
  • NZXT-Cases-NZXT-H9-Flow-Mid-Tower-ATX-Case-CM-H92FB-01-2
  • NZXT-Cases-NZXT-H9-Flow-Mid-Tower-ATX-Case-CM-H92FB-01-4
  • NZXT-Cases-NZXT-H9-Flow-Mid-Tower-ATX-Case-CM-H92FB-01-3
$199.00
Was: $229.0  WAS Tips    Save $30.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 22hrs and 59mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post At Other Store
    QLD Pickup & Post
    • Post At Other Store
    • Mansfield Robot Super StoreIcon 3 At Other Store
    • Milton At Other Store
    • Hillcrest At Other Store
    NSW Pickup & Post
    • Post At Other Store
    • Villawood Robot Super StoreIcon 3 At Other Store
    • West Ryde At Other Store
    • Ultimo At Other Store
    • Auburn At Other Store
    VIC Pickup & Post
    • Post At Other Store
    • Mulgrave Robot Super StoreIcon 3 At Other Store
    • Dandenong South Icon 3 At Other Store
    ACT Pickup
    • Fyshwick At Other Store
    SA Pickup & Post
    • Post At Other Store
    • Croydon Robot Super StoreIcon 3 At Other Store
    WA Pickup & Post
    • Post At Other Store
    • Belmont Robot Super StoreIcon 3 At Other Store
    • Balcatta At Other Store
    TAS Post
    • Post At Other Store
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

NZXT-Cases-NZXT-H9-Flow-Mid-Tower-ATX-Case-CM-H92FB-01-1



SPECIFICATIONS:

DIMENSIONS


Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

12.46 kg (27.47 lb)

GENERAL


Enclosure Type

Mid-tower

Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support

(BTF, Project Zero)

Yes (ATX, Micro-ATX)

Materials

SGCC steel, tinted tempered glass

CLEARANCE


CPU Cooler Height

165 mm

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm

Top Radiator & Fan   Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm)

FRONT I/O PORTS


USB 3.2 Type-A

2

USB 3.2 Gen2x2 Type-C

1

Headset Jack

1

EXPANSION SLOTS


Standard

7

Vertical

0

DRIVE BAYS


2.5"

4+2

3.5"

2

FAN SUPPORT


Front-Right

3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

RADIATOR SUPPORT


Front-Right

Up to 420 mm

Top

Up to 420 mm

Bottom

Up to 360 mm

Rear

Up to 120 mm

FAN SPECS - F140Q (CV)


Model

F140Q (CV)

Speed

1,350 ± 150 RPM

Airflow

100.25 CFM

Static Pressure

1.4 mmH2O

Noise

22.9 dBA

Fan Connector

3-pin

FAN SPECS - F120Q (CV)


Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin

OTHERS


What’s in the Box

H9 Flow x 1

Pre-installed F140Q (CV) x 3

Pre-installed F120Q (CV) x 1

Installation accessories x 1

User guide x 1




  • Product Name:
    NZXT H9 Flow Mid-Tower ATX Case (CM-H92FB-01)
  • Model Number:
    CM-H92FB-01
  • Brand:
    NZXT NZXT
  • Warranty Period:
    2 Year
