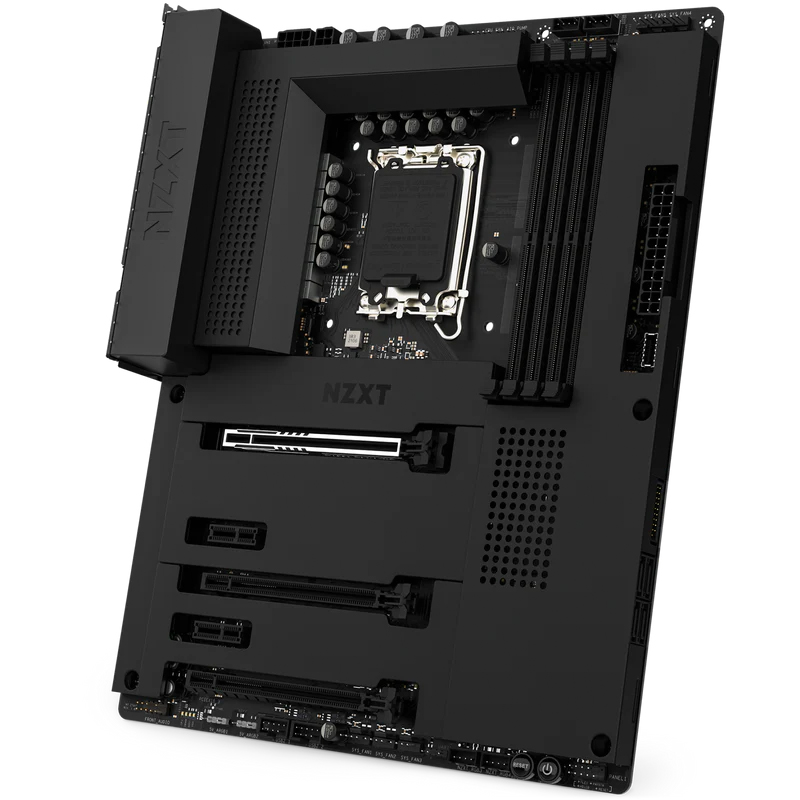

NZXT N7 Z790 LGA 1700 ATX Motherboard (N7-Z79XT-B1)

Socket

LGA 1700 for Intel® 14th, 13th, and 12th Generation Core™ i9/ i7/ i5 Processors

Intel® Hybrid Technology

Supported

Turbo Boost Max 3.0 Technology

Supported

Intel® Thermal Velocity Boost (TVB)

Supported

Intel® Adaptive Boost Technology (ABT)

Supported

CHIPSET

Intel®

Z790

MEMORY

DIMM Slots

4, DDR5 only

Max Memory Support

192GB, DDR5

Memory Architecture

Dual-Channel

OC Frequency

7200+ (O.C.)

Intel® Extreme Memory Profile (XMP) 3.0

Supported

EXPANSION SLOTS

PCIe 5.0 ×16 slot (PCIEX16_1)

1 (Supports NVMe SSD as boot disks)

PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3)

2 (Supports NVMe SSD as boot disks)

PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)

2 (Supports NVMe SSD as boot disks)

M.2 Socket (Key E)

1 (supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2)

STORAGE

M.2_1

Type 2242/2260/2280 (PCIe 4.0 ×4 mode)

M.2_2

Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode)

M.2_3

Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode)

SATA 6Gb/s ports

4

Intel® Volume Management Device (VMD)

Supported

NVMe SSD as boot disks

Supported

LAN

Realtek®

RTL8125BG 2.5G LAN

WIRELESS

Tri-Band Wi-Fi 6E

Supported

Bluetooth

V5.3

AUDIO

Realtek®

ALC1220 Codec

REAR I/O

Wireless antenna SMA   connectors

2

HDMI™ port

1

USB 2.0

2

USB 3.2 Gen 2x2 Type-C port

1

USB 3.2 Gen 2 ports

2

USB 3.2 Gen 1 ports

3

Clear CMOS button

1

LAN (RJ45) port

1

Audio jacks

5

Optical S/PDIF Out port

1

INTERNAL I/O

24-pin ATX power connector

1

8+4-pin ATX 12V power connector

1

4-pin CPU_FAN connector

1

4-pin AIO_PUMP connector

1

4-pin SYS_FAN connectors

5

NZXT RGB LED connectors

4

5V ARGB LED connector

2

USB 2.0 header

2 (Up to 4 USB 2.0 ports)

USB 3.2 Gen1 header

1 (Up to 2 USB 3.2 Gen 1 ports)

USB 3.2 Gen2x2 front panel header

1 (For USB Type-C)

Front panel audio connector

1

Power button

1

Reset button

1

POST LEDs

4

PACKAGE CONTENTS

Inside the Box

N7 Z790 Motherboard

SATA cables (2 x 90°, 2 x 180°) x4

M.2 screws x3

M.2 Standoff

Wireless antenna x2

Manual
