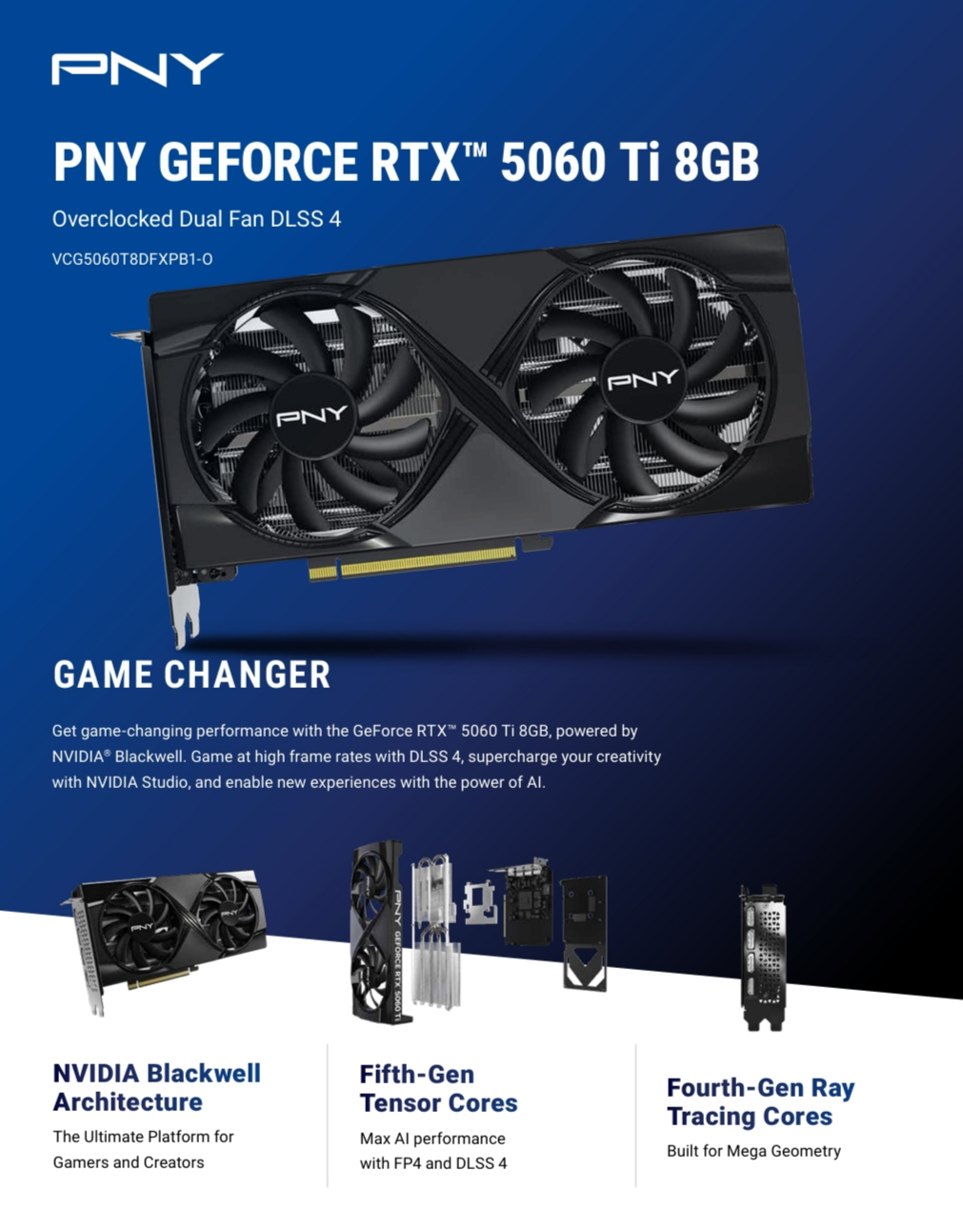

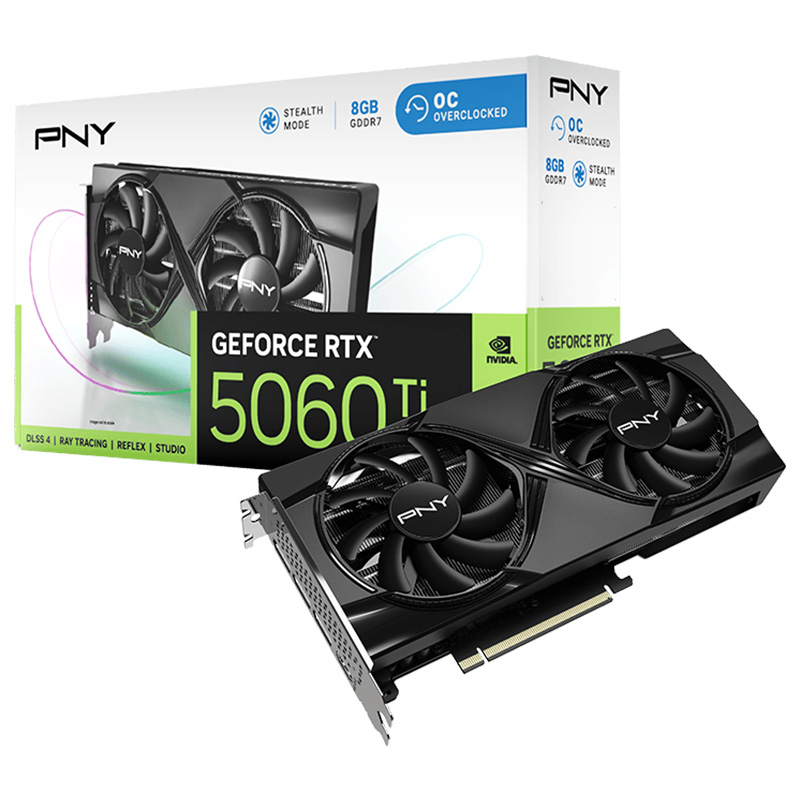

PNY GeForce RTX 5060 Ti 8G OC Graphics Card (VCG5060T8DFXPB1-O)

CUDA® Cores

TBD

Clock Speed

2407 MHz

Boost Speed

2692 MHz

Memory Speed (Gbps)

28

Memory Size

8 GB GDDR7

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

448

TDP

180W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

1x8-pin

Bus Type

PCI-Express 5.0 x8

Card Dimensions

9.65" x 4.72" x1.57"; 2 Slot

Box Dimensions

12.68" x 7.05" x 2.76"

System Requirements

PCI Express-compliant motherboard with one 2-width x8 graphics slot

One 8-pin supplementary power connector

Total graphics power 180 W

Required system power 600W*

Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

* Power requirements can be different depending on system configuration.

* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.
