Blackwell GPU with 8,960 CUDA cores, 2.3 GHz boost, 16 GB GDDR7 (256‑bit, 896 GB/s), 300 W TDP, PCIe 5.0 x16, DP 2.1b ×3 & HDMI 2.1b, supports 4K 480 Hz or 8K 165 Hz.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Architecture
Blackwell
CUDA® Cores
8,960
Clock Speed
2.3 GHz
Memory Speed (Gbps)
28
Memory Size
16GB GDDR7
Memory Interface
256-bit
Memory Bandwidth (GB/sec)
Up to 896
TDP
300 W
NVLink
Not Supported
Outputs
DisplayPort 2.1b (x3), HDMI® 2.1b
Multi-Screen
4
Resolution
4K at 480Hz or 8K at 165Hz with DSC*
* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz
Power Input
16-pin (One 16-pin to Three 8-pin)
Bus Type
PCI-Express 5.0 x16
Card Dimensions
11.80" x 4.73" x2.35"; 2.98 Slot
System Requirements
PCI Express-compliant motherboard with one 2.98-width x16 graphics slot
Three 8-pin supplementary power connectors
Total graphics power 300 W
Required system power 750 W*
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection*
* Power requirements can be different depending on system configuration.
* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.
Product Name:

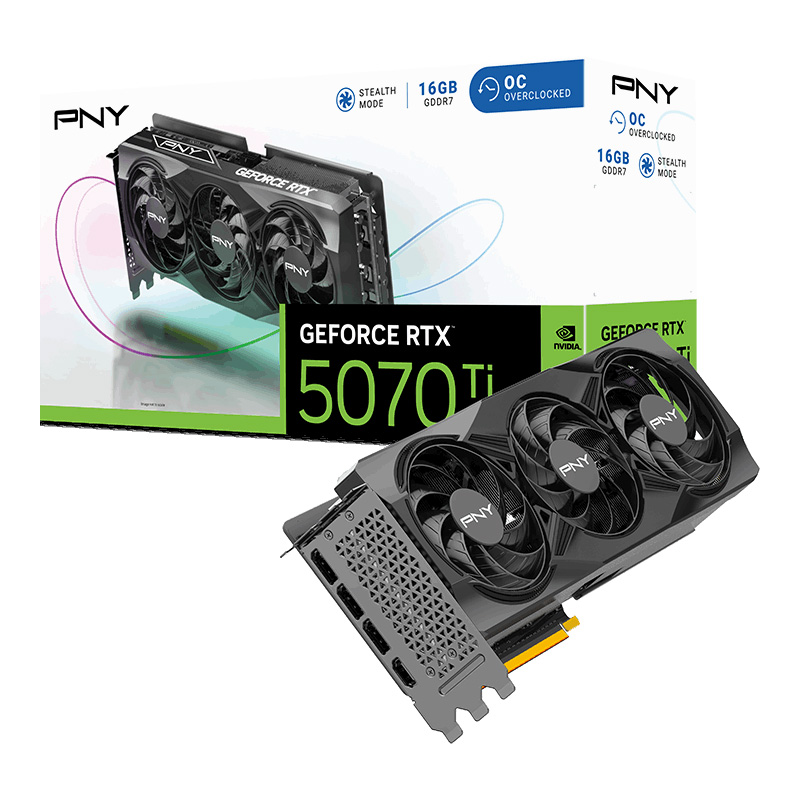

PNY GeForce RTX 5070 Ti OC 16G Graphics Card (VCG5070T16TFXPB1-O)
