Home  > PC Parts  > Networking  > Switches > QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)

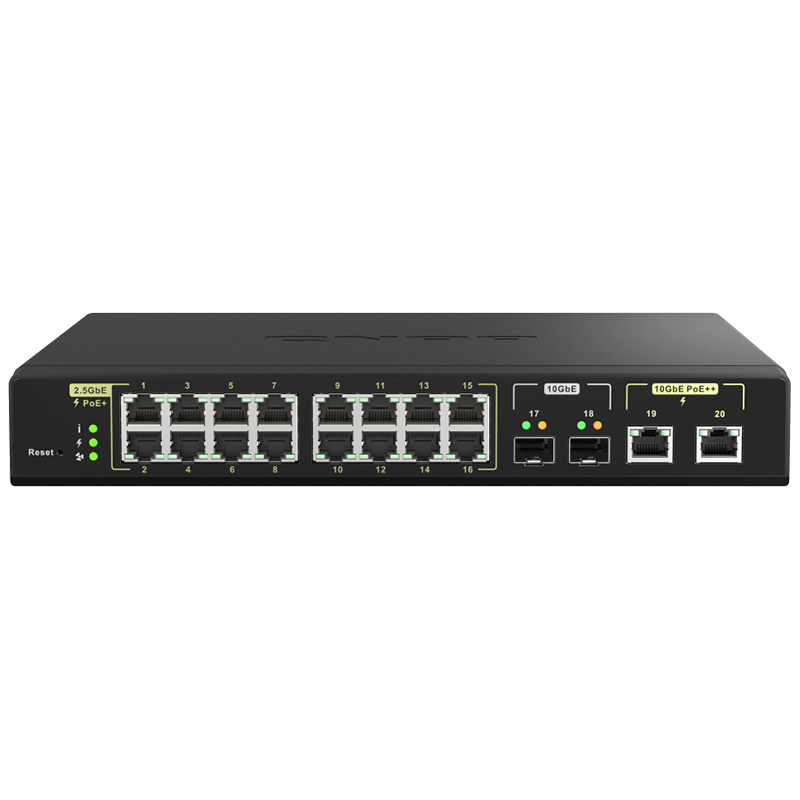

QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)

20‑port rackmount switch with 16 PoE+ (30W) and 2 PoE++ (90W) ports, 2×10GbE SFP+, 2×10GbE BASE‑T, 16×2.5GbE RJ45, 280W PoE budget, 80Gbps non‑blocking, 160Gbps capacity, web UI, LACP, VLAN, QoS, ACL, LLDP, port mirroring.

QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-7
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-3
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-4
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-5
$1,595.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 9hrs and 34mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-1
Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-2



SPECIFICATIONS:

HARDWARE


Management Type

Web Managed

Number of Ports

20

10GbE SFP+

2

10GbE BASE-T (RJ45)

2

2.5GbE (RJ45)

16

Total PoE Ports

18

PoE PSE (802.3af, 15.4W)

Port 1-16

PoE+ PSE (802.3at, 30W)

Port 1-16

PoE++ PSE (802.3bt, 90W)

Port 19-20

PoE Power Output

Port 1-16 (30W), Port 19-20 (90W)

Total PoE Power Budget

280W

Power Supply Description

Internal Power Supply Unit

Max. Power Consumption

350W

Input Power Type

AC

Input Voltage Range

100-240VAC, 50/60 Hz

MAC Address Table

32K

Total Non-Blocking Throughput

80Gbps

Switching Capacity

160Gbps

Management Interface

Web

Console

RJ45

Fan

PWM double ball bearing fan x 2

Supported Standards

IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10G BASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)

Form Factor

Rackmount

LED Indicators

Per Port: Speed/Link/Activity
Per System: Status/PoE/Fan

Buttons

Reset button

Dimensions (HxWxD)

43.5 x 285 x 234.8 mm

Weight (Net)

2.08 kg

Weight (Gross)

2.13 kg

Operating Temperature

0˚C to 40°C (32°F to 104°F)

Relative Humidity

5~95% Non-condensing

Certifications

CE, FCC, VCCI, BSMI

Electromagnetic Compliance

CLASS A

Jumbo Frames

9K

SOFTWARE


Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5G/5GBase-T

IEEE 802.3an 10G BASE-T

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3ae 10G Fiber

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.1Q VLAN Tagging

IEEE 802.3ad LACP

IEEE 802.1AB LLDP

IEEE 802.3af/at/bt Power over Ethernet(PoE)

Port Management

Port status

Port statistics

Port configuration

Jumbo frame support

IEEE 802.3x flow control

Auto-negotiation of speed and duplex modes

PoE

Power consumption monitor

Port configuration

PoE scheduling

VLAN

VLAN configuration

IEEE 802.1Q-based VLAN

Layer 2 Features

LACP

IGMP snooping v2

QoS

Port-based QoS

VLAN-based QoS

Traffic

MAC address table

Rate limit

Security

Access Control Lists (ACL): ACL by IP address

Firmware management

Firmware Live Update

Firmware Manual Update

Other Features

Link Layer Discovery Protocol (LLDP): LLDP remote device

Interface: Web UI

SNTP, DNS, DHCP client entry

Loop protection

Port mirror

OTHERS


Package Content

QSW-M2116P-2T2S

Power Cord

Rackmount kit

Rubber feet

Quick Installation Guide




  • Product Name:
    QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)
  • Model Number:
    QSW-M2116P-2T2S
  • Brand:
    QNAP QNAP
  • Warranty Period:
    2 Year
