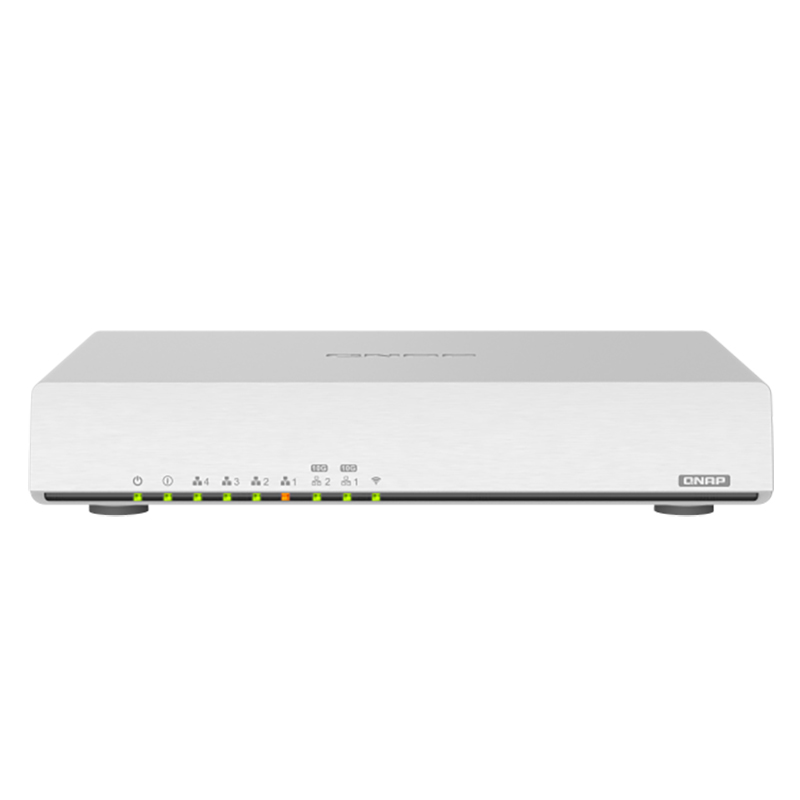

QNAP QHora 301W AX3600 Dual Band Wireless WiFi 6 Router

Number of Ethernet Ports

6

10GbE BASE-T (RJ45)

2   x 10GBASE-T (10G/5G/2.5G/1G/100M)

1GbE (RJ45)

4

CPU

Qualcomm   IPQ8072A Hawkeye 2 Quad-core 2.2 GHz 64-bit CPU

Memory

1GB

Flash

4GB   eMMC

Wireless Antenna

8   Internal Antennas

Wireless Standard

802.11a/b/g/n/ac/ax

Wireless Speed Rating

AX3600

Wireless Speed 2.4 GHz

2.4G   (1182Mbps): 4x4 (40MHz)

Wireless Speed 5 GHz

5G   (2475Mbps): 4x4 (80MHz), 2x2 (160MHz)

Frequency Band 2.4 GHz

Dual   band

Frequency Band 5 GHZ

Dual   band

Wireless Bandwidth

20/40/80/160   MHz

Transmit Output Power

Depends   on country code

Wireless Antenna Type

8   Internal 5dBi Antennas

Antenna Gain 2.4 GHz

4.5dBi

Antenna Gain 5 GHz

5.2dBi

Wi-Fi 6 (802.11ax)

Y

Wi-Fi 5 (802.11ac)

Y

USB 3.2 Gen 1 port

2

Button

Power,   WPS, Reset

Power

12V   DC

Power consumption

24W

Dimensions

250×180×48   mm

Weight

1.9kg

Packing weight

2.2kg

Operating Temperature

0°C   ~ +40°C

Operating Humidity

5%   to 95% non-condensing

Certifications

JATE   / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM

QNAP SD-WAN solution, QuWAN

Y

System   Status and Management

Device connection status

Device health status

WAN status

Wireless status

Firmware schedule   management

Operation   Modes

Wireless router mode

Access point (AP) mode

Wired   Network Management

Recommended WAN port   configurations and usage scenarios:

1GbE-1 port

10GbE-1 port

1GbE-1 and 1GbE-2 ports

WAN/LAN port   configuration

Network port connection   status

IEEE 802.3Q virtual LAN   (VLAN) (Support for wired and wireless interface)

IPv4 routing management

DDNS

Wireless   Network Management

Supports IEEE 802.11ax   (Wi-Fi 6)

Supports MU-MIMO

Supports band steering   for dual-band (2.4GHz and 5GHzbandwidth) access points

Transmission power   (high, middle, and low)

20/40/80/160 MHz   bandwidth (160MHz can be selected for countries that are governed by the   following regulatories: CE, IC, NCC, TELEC)

Dynamic Frequency   Selection (DFS) channels (Auto, custom)

RTS/CTS (Request to   Send/Clear to Send) function

Dual-band 2.4G and 5G   band settings

Guest wireless

IEEE 802.3Q virtual LAN   (VLAN) (Support for wired and wireless interface)

Smart connect

SSID and password   configuration

Wireless Protected   Access (WPA2-PSK, WPA-PSK + WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3,   OWE)

Supports IEEE 802.11r   fast roaming

Wireless scheduler

Wireless (Protected   Setup (WPS)

Security

Protocol-based firewall   (TCP, UDP, ICMP, TCP+UDP)

Firewall rules based on   domain names and IP addresses

Port forwarding and   Network Address Translation (NAT)

Support FTP ALG, PPTP   ALG and SIP ALG

UPnP

VPN

Secure remote access   with L2TP, OpenVPN and QBelt (QNAP proprietary) protocol

Client IP pool   configuration

VPN client management

Connection logs

Secure remote access as   VPN client with OpenVPN protocol

Access   Control

Parental control

Domain Name System (DNS)   filtering and content filtering

System   Setting

Restart, Reset, Backup,   Audio Alert

Local account, QNAP ID,   Remote management

USB Settings: FTP   Server, Device User, USB usage condition

Even Logs

QuWAN SD-WAN   Service

Auto multi-site VPN

WAN optimization

WAN aggregation

Failover

Load Balance

Traffic monitoring using   QuWAN Orchestrator

Quality of Service

Maximum tunnel scale: 30

300Mbps VPN throughput

50,000 concurrent   sessions
