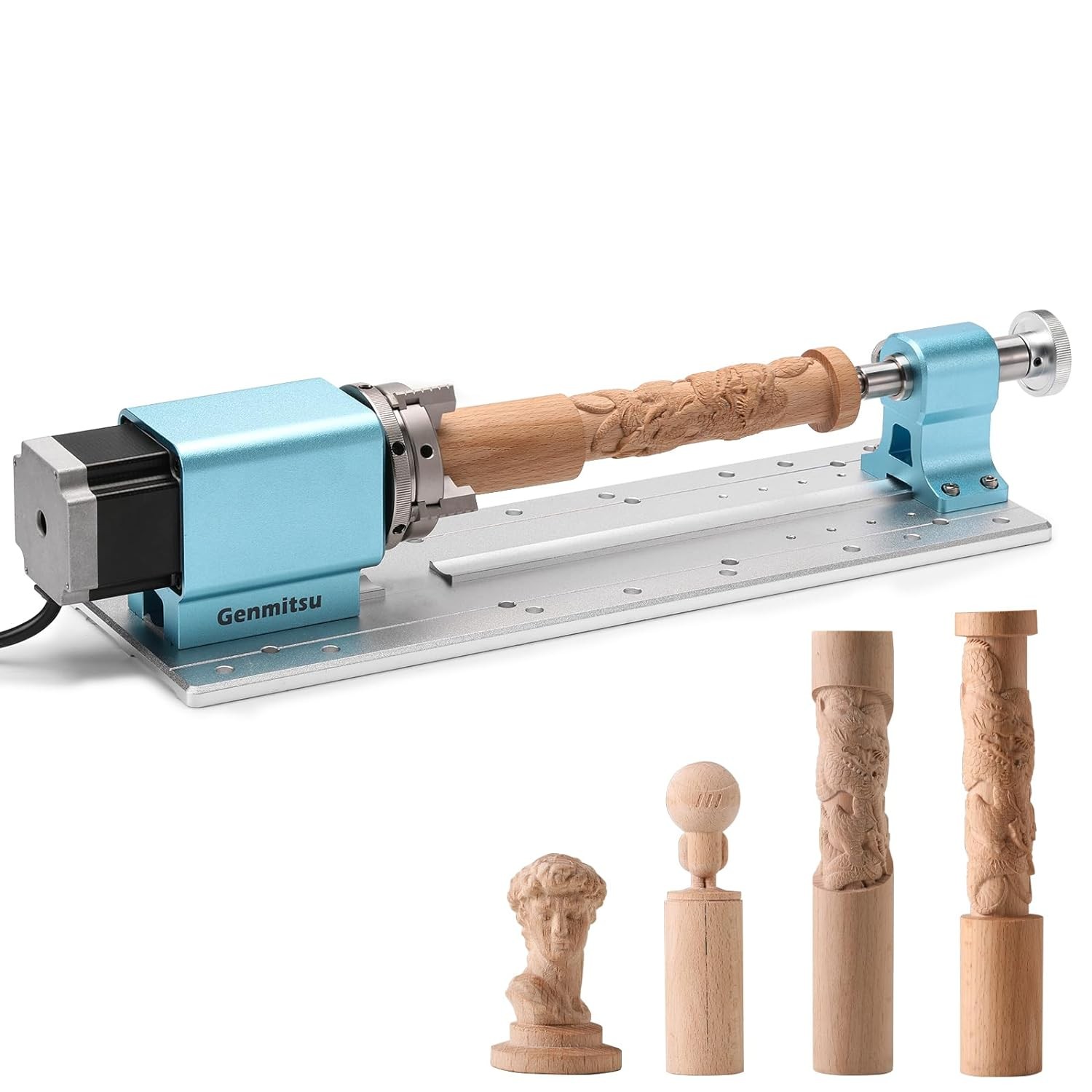

About this item Discover the Possibilities: Elevate your PROVer XL 4030 V1/PROVer XL 6050 Plus CNC machine's capabilities with the Genmitsu Rotary Module Kit. Carve from different angles and positions, and explore 3D and hybrid 2D rotary carving or laser possibilities with compatible software. NEMA23 Planetary Geared Stepper Motor: Take advantage of the high torque and power provided by the NEAM23 motor. This motor enables the motion system to rotate workpieces with superior force and precision compared to other belt-driven rotary modules available in the market. Larger Compatibility: Designed for big projects and large machines, the Genmitsu rotary module kit easily handles materials of different sizes. With a clamped material range from 15-275mm (without tailstock) to 15-215mm (with tailstock) and compatibility with 2-67mm diameters, it ensures precise engraving for industrial components, artistic creations, and detailed prototypes. Precision Control: Utilize the 10:1 reduction ratio for precise control, offering a minimum angle of 0.1° and a maximum angular speed of 480° per second, ensuring high speed and unparalleled accuracy. User-Friendly: We provide step-by-step instructions, along with dedicated after-sales support. Your setup and operation experience will be hassle-free.
Specification: Compatible CNC Machine: Genmitsu PROVer XL 4030 V1/PROVer XL 6050 Clamped Material Size: With Tailstock Length: 15-215mm; Without Tailstock Length: 15-275mm Clamped Material Diameter: Forward Mounting: 2-37mm; Reverse Mounting: 20-67mm Tailstock Spacing Adjustment: 5 installation positions, each position spacing is 16mm, and the range of adjustment is 16-81mm Tailstock Center Adjust Range: 0-30mm Direct Electric Motor: NEMA23 Planetary Geared Stepper Motor Gear Ratio: 10:1 Max Rotate Speed: 480°/S Unidirectional Max RotateAngle: 33512 x 360° Center Height: 60mm Size: 470 x 125 x 105mm (18.50” x 4.92” x 4.13”) |
