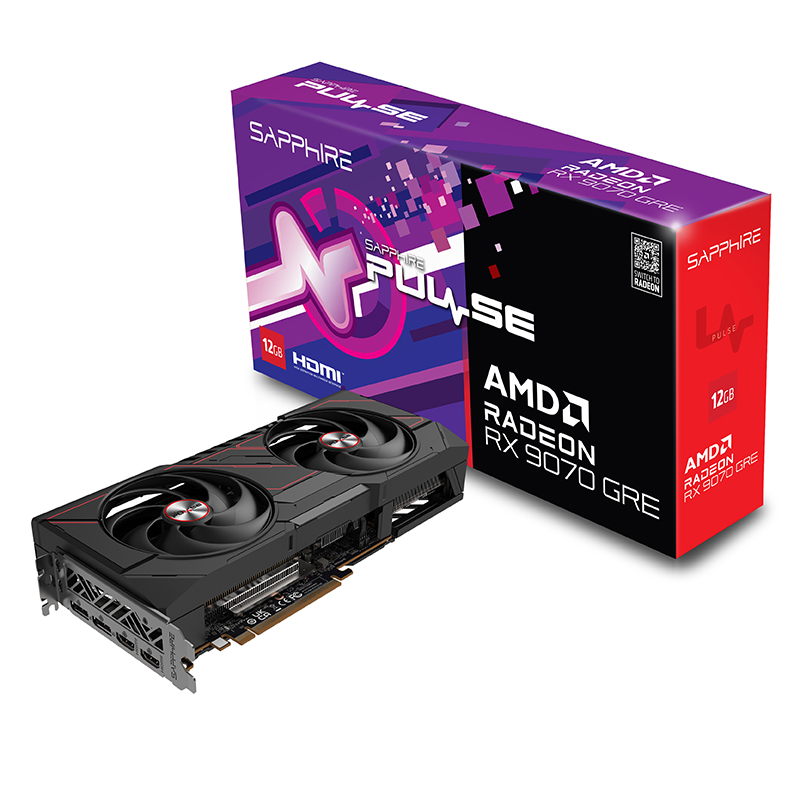

SapphirePulse AMD Radeon RX 9070 GRE Gaming OC 12GB Graphics Card (11354-01-20G)

Engine Clock

Boost Clock: Up to 2920 MHz

Game Clock: Up to 2340 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set   to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3072

Compute Units

48 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

48

AI Accelerator

96

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI® 2.1b: 7680×4320

DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI® 2.1b

2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Honeywell PTM7950 Thermal Interface Material (TIM)

AeroCurve Fan Blade

Free Flow

FrameDefense

Integrated Cooling Module

Dual-X Cooling Technology

High TG Copper PCB

Optimized Composite Heatpipes

Metal Backplate

Two-Ball Bearing Fans

14-Phase Digital Power Design

Fuse Protection

Intelligent Fan Control

Precision Fan Control

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA™ 4 Architecture

48 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)

AMD HYPR-RX with AFMF 2

AMD FidelityFX™ Super Resolution 4 with AI Upscaling

DisplayPort™ 2.1a

AMD Radiance Display™ Engine

AMD Fluid Motion Frames 2 technology

AMD Radeon™ Anti-Lag 2 technology

AMD FidelityFX™ technologies

Microsoft® DirectX® 12 Ultimate

AMD Noise Suppression

AMD Freesync™ technology

12 GB of GDDR6 on 192-bit Memory Bus

AMD FSR™ "Redstone"

AMD Software: Adrenalin Edition™ application

Cooler Type

Dual-X Cooling

AeroCurve Fan Blade

Free Flow

Integrated Cooling Module

High TG Copper PCB

Optimized Composite Heatpipes

Two-Ball Bearing

Form Factor

2.5 slot, ATX

Dimension: 280(L)X 120.25(W)X 51.5 (H)mm

Power Consumption

240W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 650 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
