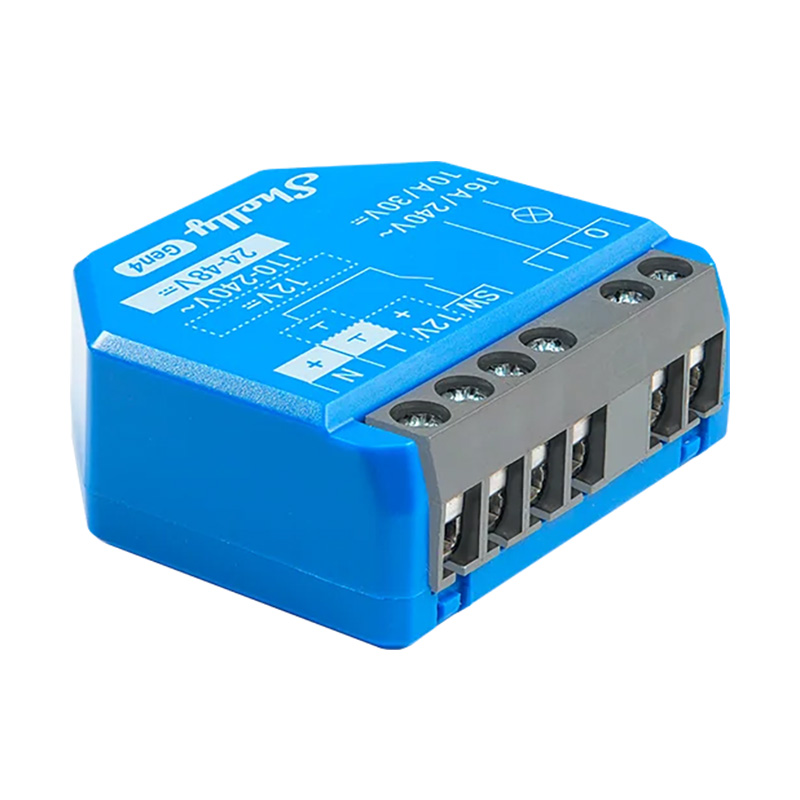

Shelly 1 Gen4 Dry Contact Smart Switch (SH-SHELLY1G4)

Name: Shelly 1 Gen4 Dry Contact Smart Switch (SH-SHELLY1G4)
Brand: Shelly
SKU: 95665
Price: 33.00 AUD
Availability: OutOfStock

Compact blue wall‑mounted relay (37×42×16 mm, 26 g) supports 0.5‑4 mm² conductors, 16 A/240 V switching, internal temperature sensor, Wi‑Fi (802.11ax, ≤50 m), Bluetooth 5 LE, Zigbee 3.0 repeater, MQTT, scripting & 20 schedules.

$33.00

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 11hrs and 7mins

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

PHYSICAL
Size (HxWxD)	37x42x16 mm / 1.46x1.65x0.63 inch
Weight	26 g / 0.92 oz
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	Wall console
Shell material	Plastic
Shell color	Blue
Terminals color	Grey
ENVIRONMENTAL
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
ELECTRICAL
Power supply	110-240 V~ 24-48 V⎓ 12 V⎓
Power consumption	< 1 W
Neutral not needed	No
External protection	Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
OUTPUT CIRCUITS RATINGS
Max. switching voltage	240 V~ 30 V⎓
Max. switching current	16 A/240 V~ 10 A/30 V⎓
SENSORS, METERS
Internal-temperature sensor	Yes
RADIO
WI-FI
Protocol	802.11 b/g/n/ax
RF band	2401 - 2483 МHz
Max. RF power	< 20 dBm
Range	Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions)
BLUETOOTH
Protocol	5 (LE)
RF band	2402 - 2480 MHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
ZIGBEE
Protocol	3.0
Zigbee repeater	Yes
RF bands	2405 - 2480 MHz
Max. RF power	< 20 dBm
Range	Up to 300 m / 984 ft outdoors, up to 100 m / 328 ft indoors (depending on local conditions)
MICROCONTROLLER UNIT
CPU	ESP-Shelly-C68F
Flash	8MB
FIRMWARE CAPABILITIES
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes

Product Name:

Shelly 1 Gen4 Dry Contact Smart Switch (SH-SHELLY1G4)
Model Number:

SH-SHELLY1G4
Brand:

Shelly
Warranty Period:

3 Year
