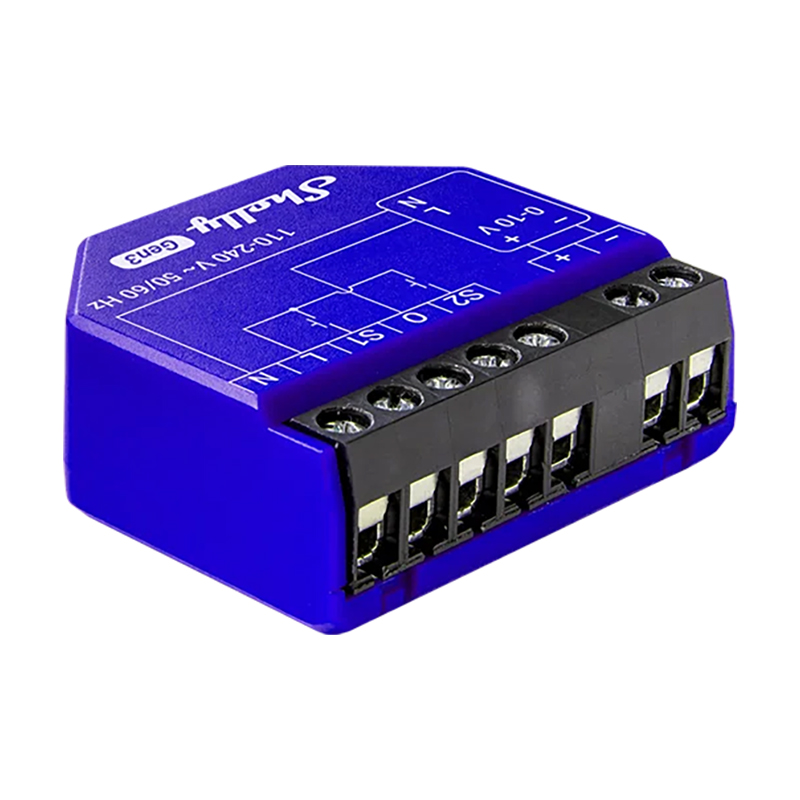

Shelly Dimmer 0/1-10V Gen3 Wi-Fi Dimmer Controller with Power Measurement (SH-SHELLY-01DIM)

Name: Shelly Dimmer 0/1-10V Gen3 Wi-Fi Dimmer Controller with Power Measurement (SH-SHELLY-01DIM)
Brand: Shelly
SKU: 95678
Price: 43.00 AUD
Availability: OutOfStock

Compact 38.5×43.5×17 mm, 28.5 g smart relay. 110‑240 V input, <1.5 W, 13 A load, 0‑10 V current‑sourcing control (35 mA). Wi‑Fi 802.11b/g/n, Bluetooth 4.2, ESP32‑C3 MCU, scripting, MQTT, 20 schedules, voltage/amp metering, internal temp sensor.

$43.00

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 6hrs and 58mins

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

PHYSICAL
Size (HxWxD)	38.5x43.5x17mm / 1.52x1.71x0.67in
Weight	28.5 g / 0.99 oz
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	5 to 6 mm / 0.20 to 0.24 in
Mounting	Wall console/behind wall/ceiling construction
Shell material	Plastic
Shell color	Shell: Pantone 2736C (blue) Print: White
Connector color	Black
ENVIRONMENTAL
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
ELECTRICAL
Power supply	110-240 V~ 50/60 Hz
Power consumption	< 1.5 W
Neutral not needed	No
0-10V/1-10V voltage control type	Current sourcing
External protection	16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
OUTPUT CIRCUITS RATINGS
Max. switching voltage	240 V~
Max. switching current	13 A
Max. control current	35 mA
SENSORS, METERS
Voltmeter (AC)	110 V - 240 V
Voltmeter accuracy	±10 %
Ammeter (AC)	50 mA - 16 A
Ammeter accuracy	±10 %
Power and energy meters	Active and apparent power Active and apparent energy Power factor
Measurement data storage	No
Internal-temperature sensor	Yes
RADIO
Wi-Fi
Protocol	802.11 b/g/n
RF band	2401 - 2495 МHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
BLUETOOTH
Protocol	4.2
RF band	2400 - 2483.5 MHz
Max. RF power	< 4 dBm
Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MICROCONTROLLER UNIT
CPU	Shelly ESP32 C3
Clock frequency	40 Mhz
Flash	8 MB
FIRMWARE CAPABILITIES
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
Advanced schedules	Yes
KVS (Key-Value Store)	Yes

Product Name:

Shelly Dimmer 0/1-10V Gen3 Wi-Fi Dimmer Controller with Power Measurement (SH-SHELLY-01DIM)
Model Number:

SH-SHELLY-01DIM
Brand:

Shelly
Warranty Period:

3 Year
