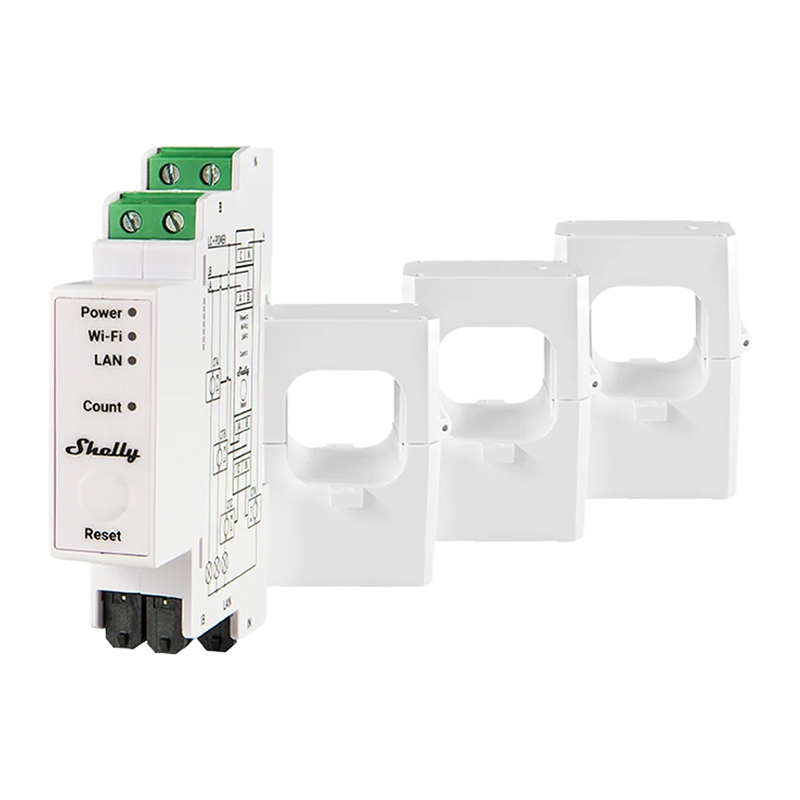

Shelly Pro 3EM 400A 3-Phase Energy Meter (SH-SHELLY3EMPRO400)

Name: Shelly Pro 3EM 400A 3-Phase Energy Meter (SH-SHELLY3EMPRO400)
Brand: Shelly
SKU: 95827
Price: 452.00 AUD
Availability: OutOfStock

DIN‑rail energy meter (94×19×69 mm, 62 g) measures 100‑260 V ±1% and 0‑400 A RMS via CT (±1%/±2% low range), logs 60 days @1 min, internal temp sensor, Wi‑Fi (b/g/n, 30 m), Bluetooth 4.2, ESP32, 16 MB flash, scripting, MQTT, 20 webhooks.

$452.00

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 9hrs and 15mins

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

PHYSICAL
Size (HxWxD)	94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight	62 ±1 g / 2.19 ±0.05 oz
Mounting	DIN rail
Screw terminals max torque	0.4 Nm / 4.43 lbin
Conductor cross section	0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Shell material	Plastic
Color	White
ENVIRONMENTAL
Ambient temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
ELECTRICAL
Power supply voltage AC	110 - 240 V, 50/60 Hz
Power supply voltage DC	N/A
Power consumption	< 3 W
External protection	Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
SENSORS, METERS
Internal-temperature sensor	Yes
Voltmeters (RMS for each phase)	100 - 260 V
Voltmeters accuracy	±1 %
Ammeters (RMS via CT for each phase and the Neutral)	0 - 400 A
Compatible CT	CT-400A
Ammeters accuracy	±1 % (5 - 400 A), ±2 % (0 - 5 A)
Power and energy meters	Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy
Channel-to-channel calibration minimum load	5000 W per channel
No load threshold	30 VA per channel
Measurement data storage	At least 60 days of 1 min data resolution
Data export	CSV for PQ recorded values JSON format export through RPC
RADIO
RF band	2400 - 2495 MHz
Max. RF power	<20 dBm
Wi-Fi protocol	802.11 b/g/n
Wi-Fi Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol	4.2
Bluetooth Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU	ESP32-D0WDQ6
Flash	16 MB
FIRMWARE CAPABILITIES
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
CoAP	No

Product Name:

Shelly Pro 3EM 400A 3-Phase Energy Meter (SH-SHELLY3EMPRO400)
Model Number:

SH-SHELLY3EMPRO400
Brand:

Shelly
Warranty Period:

1 Year
