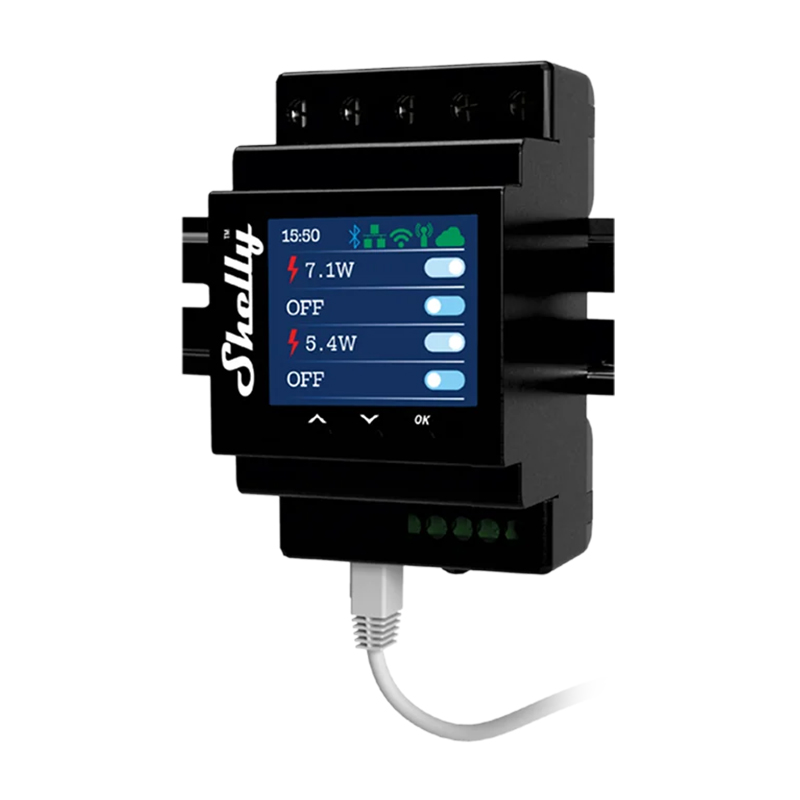

Shelly Pro 4PM Relay Switch (SH-SHELLY4PMPRO)

Compact DIN‑rail relay (96×53×59 mm, black) for 110‑240 V AC, 16 A/channel (40 A total), <4 W. Includes AC volt/amp meters, temperature sensor, Wi‑Fi 2.4 GHz (b/g/n), Bluetooth 4.2, ESP32 MCU, 20 schedules, scripting, MQTT & webhooks.

Shelly Pro 4PM Relay Switch (SH-SHELLY4PMPRO)
  • Smart-Home-Automation-Shelly-Pro-4PM-Relay-Switch-SH-SHELLY4PMPRO-3
$193.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 47hrs and 12mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Smart-Home-Automation-Shelly-Pro-4PM-Relay-Switch-SH-SHELLY4PMPRO-1



SPECIFICATIONS:

PHYSICAL

Size (HxWxD)

96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 in

Weight


Mounting

DIN rail

Screw terminals max torque

0.4 Nm / 3.5 lbin (bottom connectors)

1.5 Nm / 13.2 lbin (top connectors)

Conductor cross-section

0.5 to 2.5 mm² / 20 to 14 AWG (bottom connectors)

1.5 to 6 mm² / 15 to 10 AWG (top connectors)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in

Shell material

Plastic

Color

Black

ENVIRONMENTAL

Ambient temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply voltage AC

110 - 240 V

Power supply voltage DC

N/A

Power consumption

< 4 W

Neutral not needed

No

OUTPUT CIRCUITS RATINGS

Max switching voltage AC

240 V

Max switching voltage DC

N/A

Max switching current AC

16 A per channel, 40 A total

Max switching current DC

N/A

SENSORS, METERS

Voltmeter (AC)

Yes

Ammeter (AC)

Yes

Internal-temperature sensor

Yes

RADIO

RF band

2400 - 2495 MHz

Max. RF power

<20 dBm

Wi-Fi protocol

802.11 b/g/n

Wi-Fi Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol

4.2

Bluetooth Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU

ESP32-D0WDQ6

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

CoAP

No




  • Product Name:
    Shelly Pro 4PM Relay Switch (SH-SHELLY4PMPRO)
  • Model Number:
    SH-SHELLY4PMPRO
  • Brand:
    Shelly
  • Warranty Period:
    5 Year
