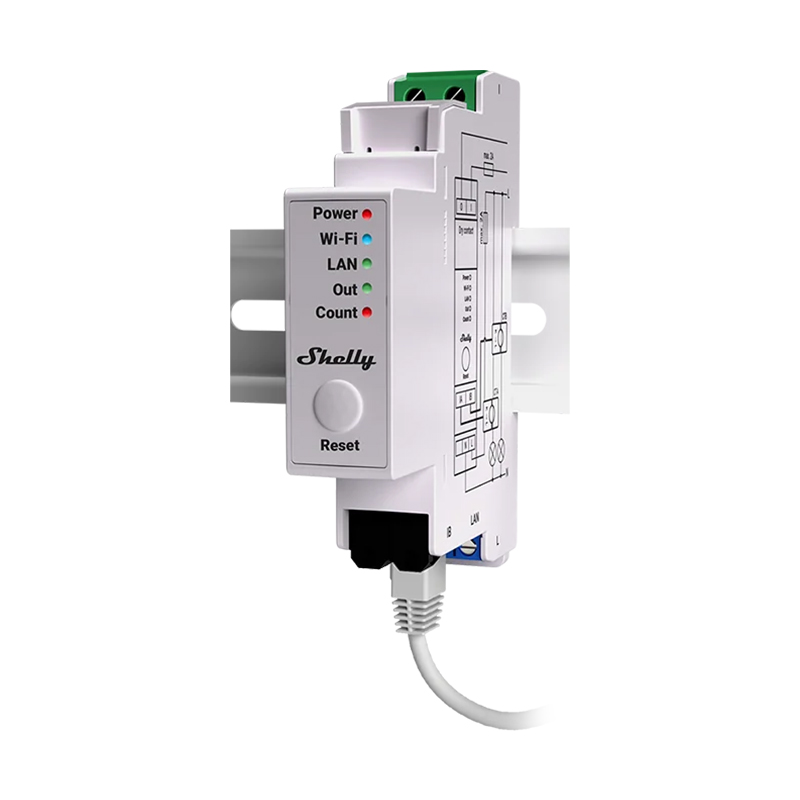

Shelly Pro EM-50 (SH-SHELLYPROEM)

Compact DIN‑rail meter (94×19×69 mm, 63 g) measures 100‑260 V, 0‑50 A via CT, logs power, energy and PF with ±1 % accuracy, stores 60 days of 1‑min data, offers Wi‑Fi (802.11b/g/n) & Bluetooth 4.2, MQTT, scripting and 20 webhooks.

Shelly Pro EM-50 (SH-SHELLYPROEM)
  • Smart-Sensors-Security-Shelly-Pro-EM-50-SH-SHELLYPROEM-3
$167.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 9hrs and 15mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Smart-Sensors-Security-Shelly-Pro-EM-50-SH-SHELLYPROEM-1


SPECIFICATIONS:

PHYSICAL

Size (HxWxD)

94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in

Weight

63 ±1 g / 2.22 ±0.05 oz

Mounting

DIN rail

Screw terminals max torque

0.4 Nm / 4.43 lbin

Conductor cross section

0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in

Shell material

Plastic

Color

White

ENVIRONMENTAL

Ambient temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply voltage A

100 - 260 V, 50/60 Hz

Power supply voltage DC:

N/A

Power consumption

< 3 W

OUTPUT CIRCUITS RATINGS

Max switching voltage AC

240 V

Max switching voltage DC

N/A

Max switching current

2 A

SENSORS, METERS

Internal-temperature sensor

Yes

Voltmeter (RMS)

100 - 260 V

Voltmeters accuracy

±1 %

Ammeters (RMS via CT)

0 - 50 A

Ammeters accuracy

±1 % (5 - 50 A), ±2 % (0 - 5 A)

Power and energy meters

Active and apparent power

Active and apparent energy

Power factor

Measurement data storage

At least 60 days of 1 min data resolution

Data export

CSV for PQ recorded values

JSON format export through RPC

RADIO

RF band

2400 - 2495 MHz

Max. RF power

<20 dBm

Wi-Fi protocol

802.11 b/g/n

Wi-Fi Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol

4.2

Bluetooth Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU

ESP32-D0WDQ6

Flash

16 MB

FIRMWARE CAPABILITIES

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

CoAP

No




  • Product Name:
    Shelly Pro EM-50 (SH-SHELLYPROEM)
  • Model Number:
    SH-SHELLYPROEM
  • Brand:
    Shelly
  • Warranty Period:
    5 Year
