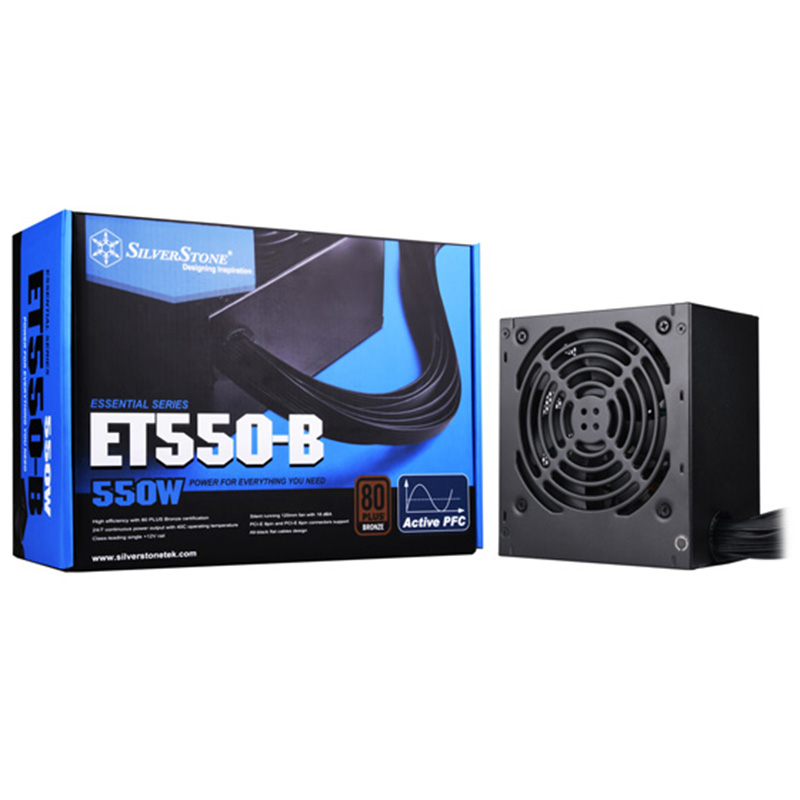

SilverStone 550W 80+ Bronze Power Supply (SST-ET550-B V1.2)

SilverStone 550W 80+ Bronze Power Supply (SST-ET550-B V1.2)
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-7
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-8
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-2
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-1
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-3
  • Power-Supply-PSU-SilverStone-550W-80-Bronze-Power-Supply-SST-ET550-B-V1-2-4
$79.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 1hrs and 10mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

ET550-B

  • High efficiency with 80 PLUS Bronze certification

  • 24/7 continuous power output with 40℃ operating temperature

  • Class-leading single +12V rail

  • Silent running 120mm fan with 18 dBA

  • PCI-E 8pin and PCI-E 6pin connectors support

  • All-black flat cables design

  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.2)





SPECIFICATIONS:

Colour

Black（Lead-Free Paint）

Max. DC Output

550W

Power density

305W per litre

Load Range

Output

Max.(Amps)

Peak (Amps)

Min.(Amps)

Range (%)

Line   Reg.(%)

Ripple(mVp-p)

+3.3V

18A

/

0.3A

±5%

±1%

50mV

+5V

16A

/

0.5A

±5%

±1%

50mV

+12V

42A

/

1.0A

±5%

±1%

120mV

+5VSB

2.5A

3.0A

0A

±5%

±1%

50mV

-12V

0.3A

/

0A

±10%

±1%

120mV

Combined +3.3V & +5V

110W

Combined +12V

504W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

82% ~ 85% @ 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection

Over power protection

Over voltage protection

Short circuit protection

Over temperature protection

Connectors

1 x 24 / 20-Pin motherboard connector（500mm）

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)

2 x 8 / 6-Pin PCIE connector（500mm   / 150mm）

6 x SATA connector（"500mm   / 150mm / 150mm" x 2）

3 x 4-Pin Peripheral connector（500mm   / 150mm / 150mm）

1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）



*Dual (CPU) EPS connectors is used in production batch with serial numbers starting 2027 or after.

Cooling System

Single 120mm silent fan

Noise Level

18dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)

Weight

1.49 Kg




  • Product Name:
    SilverStone 550W 80+ Bronze Power Supply (SST-ET550-B V1.2)
  • Model Number:
    SST-ET550-B V1.2
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    3 Year
