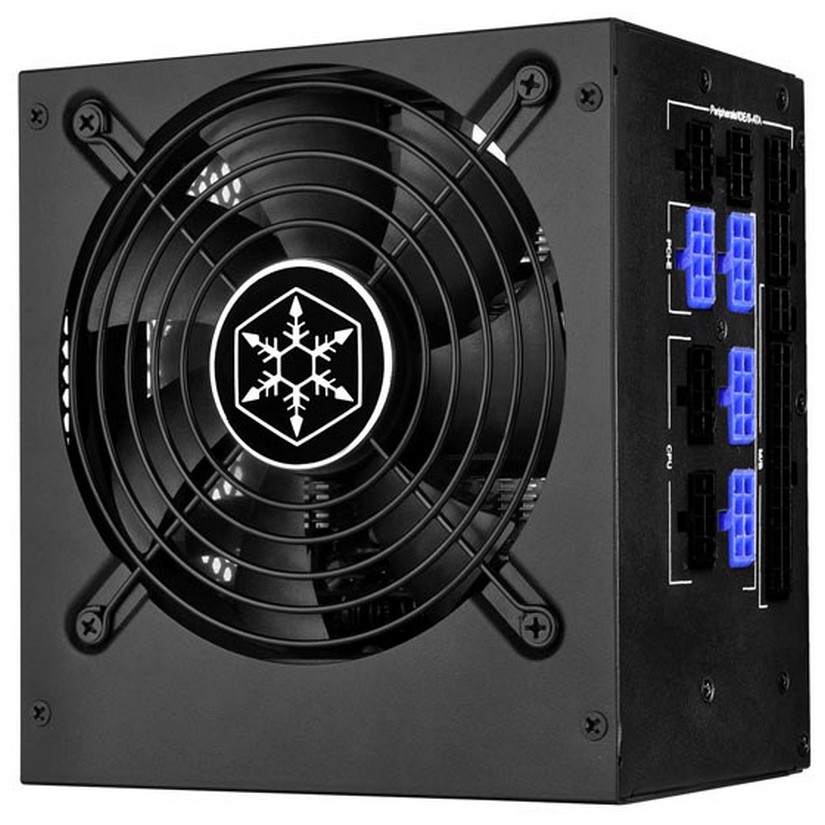

SilverStone 850W Strider 80+ Platinum Power Supply(ST85F-PT)

SilverStone 850W Strider 80+ Platinum Power Supply(ST85F-PT)
  • 37382_thumb_P_1481072892080
  • 37382_thumb_P_1481072909364
  • 37382_thumb_P_1481072909280
  • 37382_thumb_P_1481072909574
  • 37382_thumb_P_1481072910449
  • 37382_thumb_P_1481072910636
  • 37382_thumb_P_1481072913647
  • 37382_thumb_P_1481072919538
$195.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 18hrs and 23mins

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.



  • Compact design with a depth of 140mm for easy integration
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • 24/7 continuous power output with 40Æ’ operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Ultra silent 120mm fan with intelligent semi-fanless operation

    As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.



Max. DC Output850W
Power density471W per liter
Load Range +3.3V+5V+12V+5VSB-12VMax.(Amps)22A22A70.9A3.0A0.3APeak (Amps)/////Min.(Amps)0A0A0A0A0ARange (%)±3%±3%±3%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV
combined +3.3, +5V120W
combined +12V850W
Input Voltage90V~264V
Input Frequency Range47Hz~63Hz
PFCActive PFCˆPF>0.9 at full load‰
Efficiency89%~92% at 20%~100% loading
MTBF100,000 hours
Operating temperature0°C ~ 40°C
ProtectionOver Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under voltage protection
Over Temperature Protection
Connectors1 x 24 / 20-Pin motherboard connectorˆ550mm‰
1 x 8 / 4-Pin EPS / ATX 12V connectorˆ750mm‰
1 x 8 / 4-Pin EPS / ATX 12V connectorˆ550mm‰
4 x 8 / 6-Pin PCIE connectorˆ"550mm" x 4‰
12 x SATA connectorˆ"600mm / 150mm / 150mm / 150mm" x 3‰
3 x 4-Pin Peripheral connectorˆ600mm / 150mm / 150mm‰
1 x 4-Pin Floppy connectorˆ100mm‰
Cooling SystemSingle 120mm silent fan
Noise Level0 ~ 28 dBA
Dimension150 mm (W) x 86 mm (H) x 140 mm (D)
Weight2.54 kg
Form factorATX
Certification80 PLUS Platinum

* Specifications are subject to change without notice.
  * Specifications may vary.
  * The product picture(s) is only for your reference, it may differ from the actual product.



SilverStone 850W Strider 80+ Platinum Power Supply(ST85F-PT)

SilverStone 850W Strider 80+ Platinum Power Supply(ST85F-PT)
  • Product Name:
    SilverStone 850W Strider 80+ Platinum Power Supply(ST85F-PT)
  • Model Number:
    SST-ST85F-PT
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    5 Year
