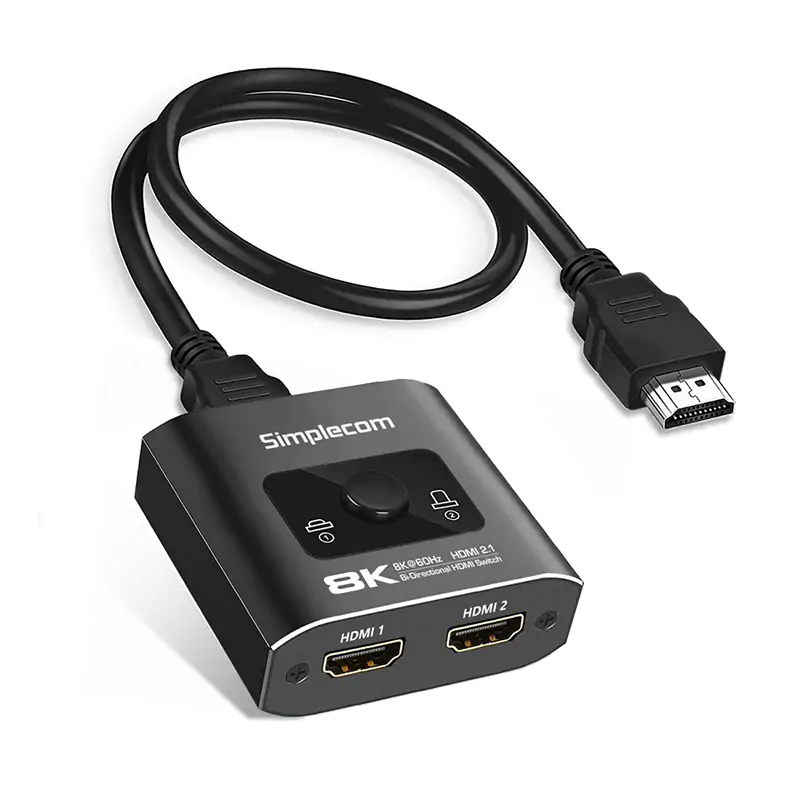

Simplecom Bi-Directional 2 Way HDMI 2.1 8K@60Hz Switch Selector (CM302v2)

Simplecom Bi-Directional 2 Way HDMI 2.1 8K@60Hz Switch Selector (CM302v2)
  • HDMI-Cables-Simplecom-Bi-Directional-2-Way-HDMI-2-1-8K-60Hz-Switch-Selector-CM302v2-2
$18.0
Was: $20.0  WAS Tips    10% Off!
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 0hrs and 13mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Simplecom Bi-Directional 2 Way HDMI 2.1 8K@60Hz Switch Selector (CM302v2)
  • Model Number:
    CM302v2
  • Brand:
  • Manufacturer Warranty:
    1 Year

Description

Simplecom Bi-Directional 2 Way HDMI 2.1 8K@60Hz Switch Selector
CM302v2 is bi-directional 2-way HDMI 2.1 switch than can be used to switch two different HDMI sources or HDMI displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.

You can connect two HDMI sources, such as Game Consoles, PC, TV Box to one HDMI port on your TV or monitor, and allow two HDMI source devices to share one HDMI port on display. It also functions in the opposite direction, connecting an HDMI source to switch between two displays. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.


This HDMI switch is HDMI 2.1 compliant, and provides high bandwidth up to 48Gbps. It supports video resolution up to 8K@60hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.

  • Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays

  • Quickly switch video sources or displays without having to swap cables

  • Durable aluminium alloy casing, also efficiently dissipate heat

  • Portable and compact size, easy to install

  • HDMI 2.1 compliant, support bandwidth up to 48Gbps

  • Support HDMI video resolution up to 8K@60hz

  • HDCP 2.3 compliant, wide compatibility with most HDMI source devices

  • Powered by HDMI source device, no external power required





SPECIFICATIONS:

HDMI Version

HDMI 2.1

Video Resolution Support

Up to 1080@240Hz, 4K@120Hz, 8K@60Hz

Audio Format Support

DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1

HDR Format Support

HDR10

HDCP Version Support

HDCP 2.3

Max Bandwidth

48Gbps

Max cable distance

Input<2M, Output<2M

Max Operation Current

15mA

Power Input

USB DC 5V (Backup power only)

Operating Temperature

(-15 to +55°C)

Dimension (L x W x H)

53x52x21mm

Weight

45g

Package Contents

1 x Bi-Directional HDMI Switch

1 x HDMI cable

1 x User Manual

Notes

The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters.

This is a manual HDMI switch and does not support automatic switching.

Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI.

Two screens cannot display simultaneously under 1 Input 2 Outputs mode.
