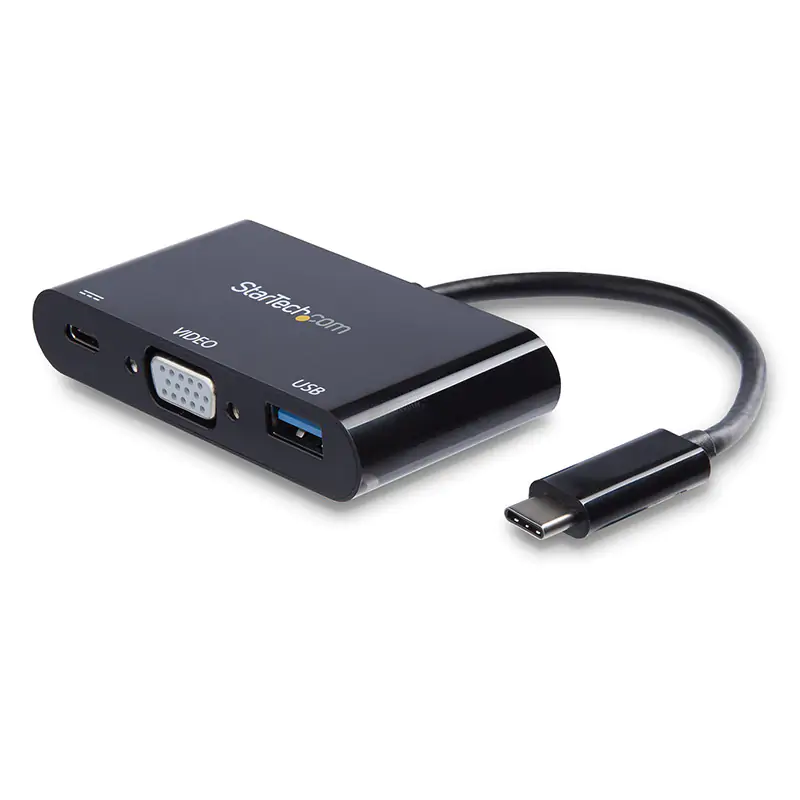

StarTech USB Type C to VGA Adapter with PD & USB Port USB C Adapter

Connector Type(s)

1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)

1 - VGA (15 pin, High Density D-Sub)

1 - USB Type-A (9 pin, 5 Gbps)

1 - USB Type-C (24 pin) USB Power Delivery only

Connector A

1 - USB-C (24 pin) DisplayPort Alt Mode

Connector B

1 - VGA (15 pin, High Density D-Sub)

1 - USB Type-A (9 pin, 5 Gbps)

1 - USB Type-C (24 pin) USB Power Delivery only

ENVIRONMENTAL

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Humidity

5~90% RH (Non-condensing)

HARDWARE

4K Support

No

Fast-Charge Port(s)

No

Displays Supported

1

Bus Type

USB-C

Industry Standards

USB 3.0 - Backward compatible with USB 2.0 and 1.1

Chipset ID

VIA/VLI - VL100

VIA/VLI - VL210

NXP - PTN3355

PACKAGING INFORMATION

Package Height

34 mm [1.3 in]

Package Length

17.1 cm [6.7 in]

Shipping (Package) Weight

109 g [3.8 oz]

Package Width

14.5 cm [5.7 in]

PERFORMANCE

Maximum Data Transfer Rate

5 Gbps (USB 3.0)

Maximum Analog Resolutions

2048 x 1280p @ 60Hz

Lower resolutions are also supported.

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

PHYSICAL CHARACTERISTICS

Weight of Product

39 g [1.4 oz]

Colour

Black

Material

Plastic

Cable Length

140 mm [5.5 in]

Product Length

80 mm [3.1 in]

Product Width

40 mm [1.6 in]

Product Height

1.5 cm [0.6 in]

POWER

Power Source

USB-Powered

Power Delivery

60W

SPECIAL NOTES / REQUIREMENTS

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).

The multifunction adapter does not include a USB-C power adapter.

Optional: the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop’s USB-C based power adapter).

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

WHAT'S IN THE BOX

Included in Package

1 - USB-C to VGA multifunction adapter
