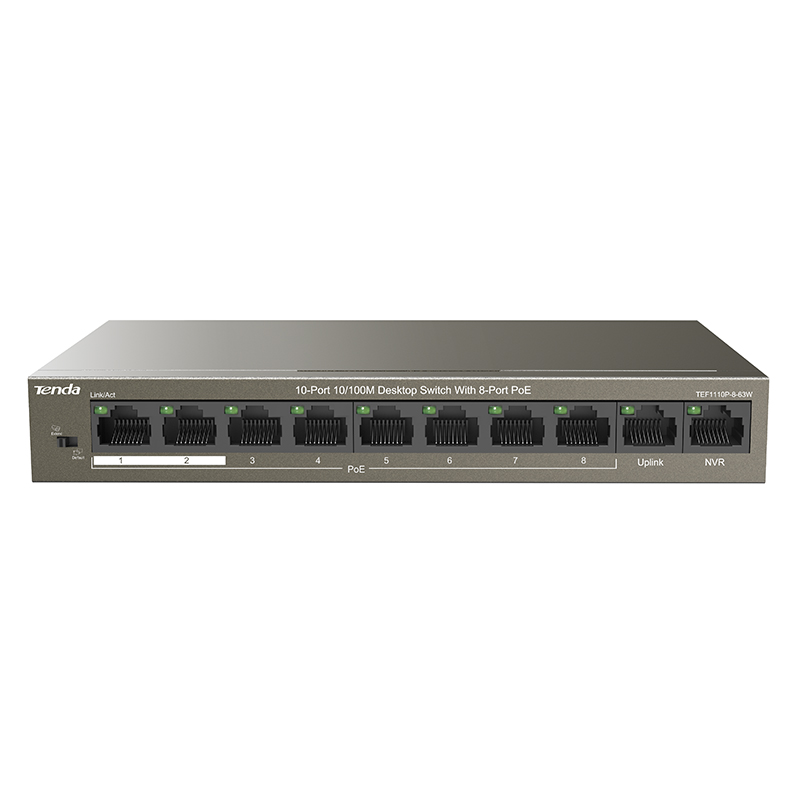

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)

Network standards

IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

10* Link/Ack LED indicators

1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV

Lightning protection for power: 4KV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

1K

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 58W

Input voltage

100－240V AC 50/60Hz

51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting: non-support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

SOFTWARE

Functions

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

Extend Mode: VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps)
