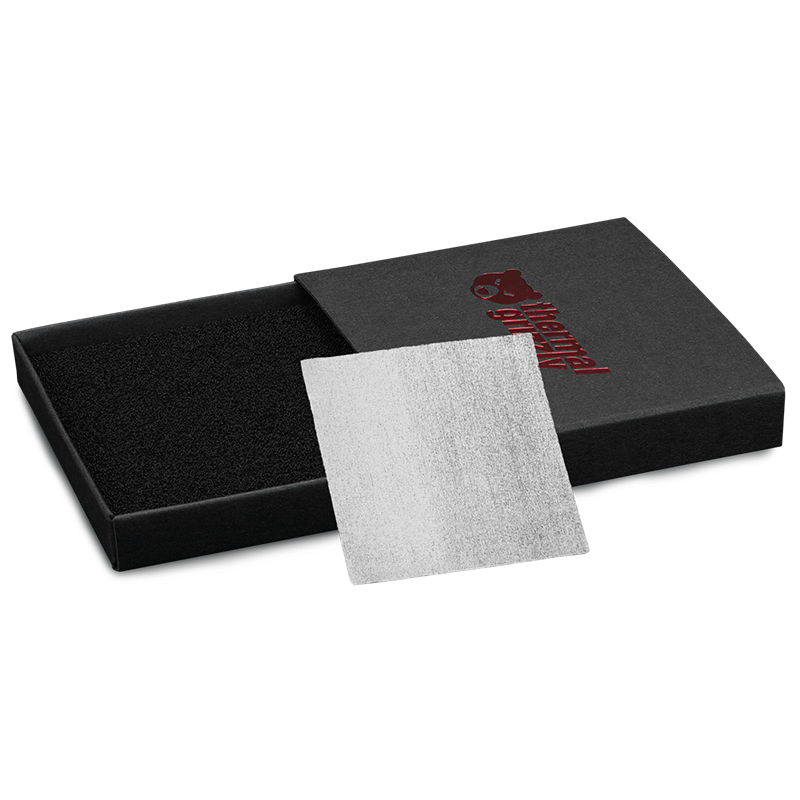

NOTE: Electrically conductive. Follow the instructions. Thermal Grizzly KryoSheet Thermal Pad- 38x38mm The graphene thermal pads of the Thermal Grizzly KryoSheet series can be used excellently as an alternative to thermal pastes from the upper performance segment. Similar to the Carbonaut pads, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is not only due to the choice of material, but also due to the innovative manufacturing process. KryoSheet does not contain any liquid components and is therefore not subject to ordinary aging as is the case with traditional thermal paste. Drying out is not possible.
Outstanding thermal conductivity
Easy to use
Consistently high performance
Extreme durability
The KryoSheet graphene pads have a molecular structure stacked in the Z-direction. This optimized structure allows for outstanding and consistent thermal conductivity. This is due to a specially developed manufacturing process in which the hexagonal crystal structure of the graphite is broken up along the basal plane in order to be able to exploit the anisotropy of the thermal conductivity of the graphite. As a side effect of this complex manufacturing process, however, the electrical conductivity is also increased and the stability of the KryoSheet pads is influenced, so that the pads can only be used according to instructions.
SPECIFICATIONS:
Color
Anthracite
Electrically insulating
No
Operating temperature
-250°C to +150°C
Size
38 x 38 mm
Thickness
0.2 mm
Notes
Multiple use of KryoSheet is not recommended.
When disassembling the cooler and handling the KryoSheet after use, micro-cracks may occur in the structure of the graphene pads, which can affect performance.
