Thermaltake 750w Toughpower Grand RGB 80+ Gold Fully Modular ATX Power Supply - RGB Sync Edition (PS-TPG-0750FPCGAU-S)

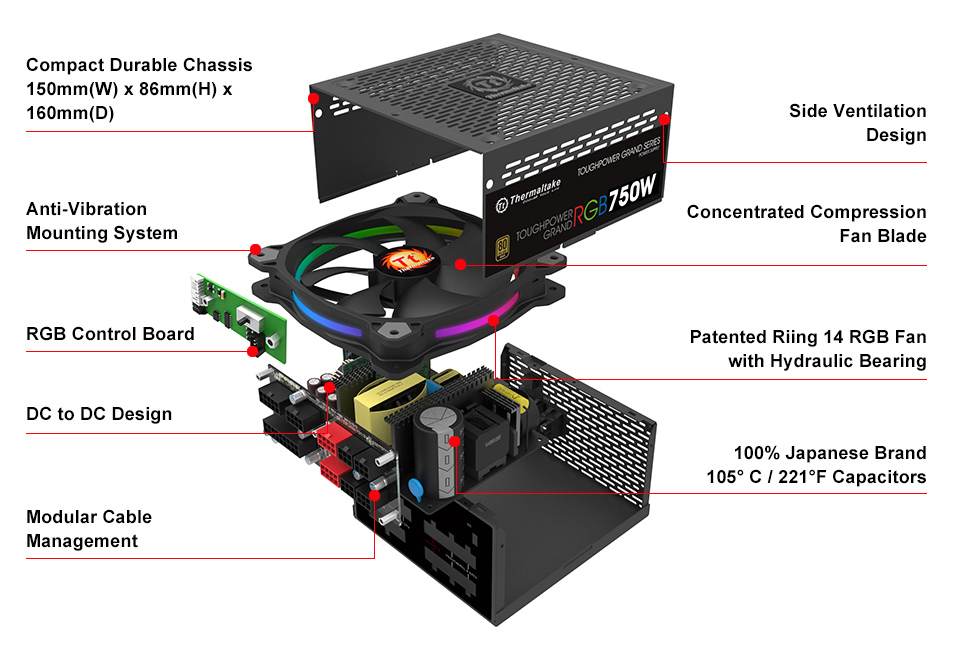

TPG-750AH3FSGR 750W ATX12V v2.4/EPS v2.92 PSU with Active PFC, 80 PLUS Gold efficiency, 14 cm hydraulic bearing fan, 4×6+2 PCI‑E connectors, OVP/SCP/OPP/UVP/OTP/OCP protection, 150×86×160 mm, 16 ms hold‑up.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Model
TPG-750AH3FSGR
Type
ATX 12V v2.4 and EPS v2.92
Max. Output Capacity
750W
Peak Output Capacity
900W
Colour
Black
Dimension （ W / H / D ）
150mm(W) x 86mm(H) x 160mm(D)
PFC （Power Factor Correction）
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
> 16msec at 100% of full load
Input current
10A
Input Frequency Range
50Hz - 60Hz
Input Voltage
100V – 240V~
Operating Temperature
0°C to + 50°C
Operating Humidity
20% to 90%,non-condensing
Storage Temperature
-40°C to + 70°C
Storage Humidity
20% to 95%, non-condensing
Cooling System
14cm hydraulic bearing fan
Efficiency
Meet 80 PLUS®Gold at 115Vac input.
MTBF
120,000 hrs minimum
Safety Approval
CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC
PCI-E 6+2pin
4
Protection
OVP,SCP,OPP,UVP,OTP,OCP
Product Name:
Thermaltake 750w Toughpower Grand RGB 80+ Gold Fully Modular ATX Power Supply - RGB Sync Edition (PS-TPG-0750FPCGAU-S)
