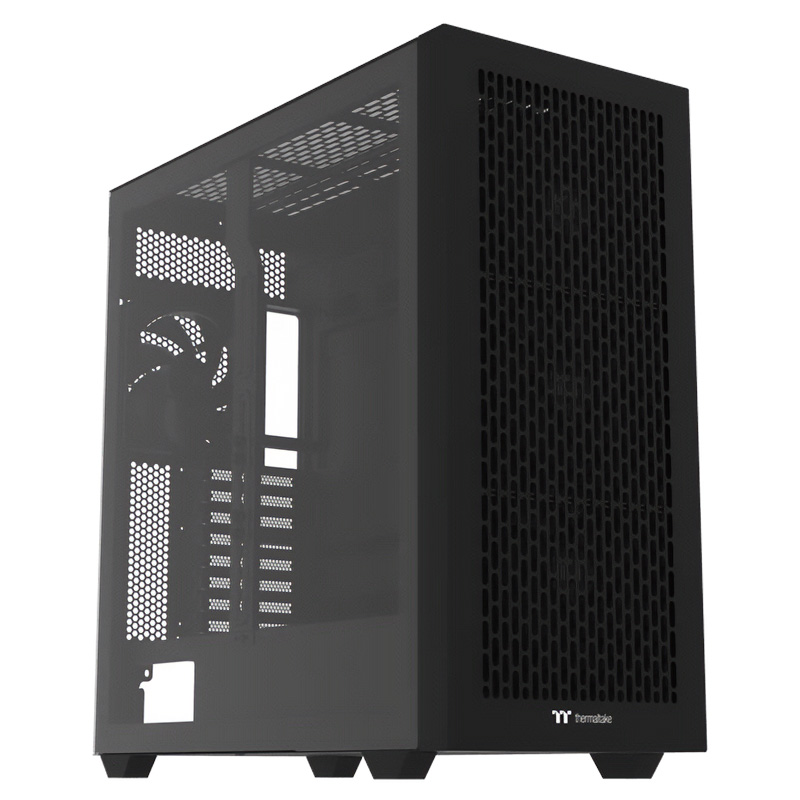

Thermaltake AX500 Steel + TG Full Tower E-ATX Case - Black (CA-11D-00F1WN-00)
AX Series full‑tower case in black SPCC steel, 550×248×548 mm. Features 4× CT140 fans, up to 8‑slot motherboard support (Mini‑ITX to E‑ATX), versatile drive bays, USB‑C, USB‑3.0, HD‑Audio, AIO radiator up to 420 mm, and clearances: CPU 185 mm, GPU 460 mm.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Series
AX Series
Case Type
Full Tower
Dimensions
550 x 248 x 548 mm
(21.7 x 9.8 x 21.6 inch)
Side Panel
Steel + TG
Color
Black
Material
SPCC
Cooling System
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4
Drive Bays
5 x 3.5” , 1 x 2.5” or 6 x 2.5”
Expansion Slots
8
Motherboard
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,
12” x 13” (E-ATX), SSI-CEB, SSI-EEB
Hidden-Connector Motherboard
9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan Support
Front:
4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Top:
3 x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Rear:
1 x 120mm , 1 x 140mm
Right:
3 x 120mm , 2x 120mm , 1x 120mm
2 x 140mm , 1x 140mm
Power Cover:
3 x 120mm , 2x 120mm , 1x 120mm
Radiator Support
Front (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top (AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear(AIO):
1 x 120mm , 1 x 140mm
Clearance
CPU cooler height limitation: 185mm(Max)
VGA length limitation:460mm(Max)
PSU length limitation: 200mm (Max)
Product Name:
Thermaltake AX500 Steel + TG Full Tower E-ATX Case - Black (CA-11D-00F1WN-00)
