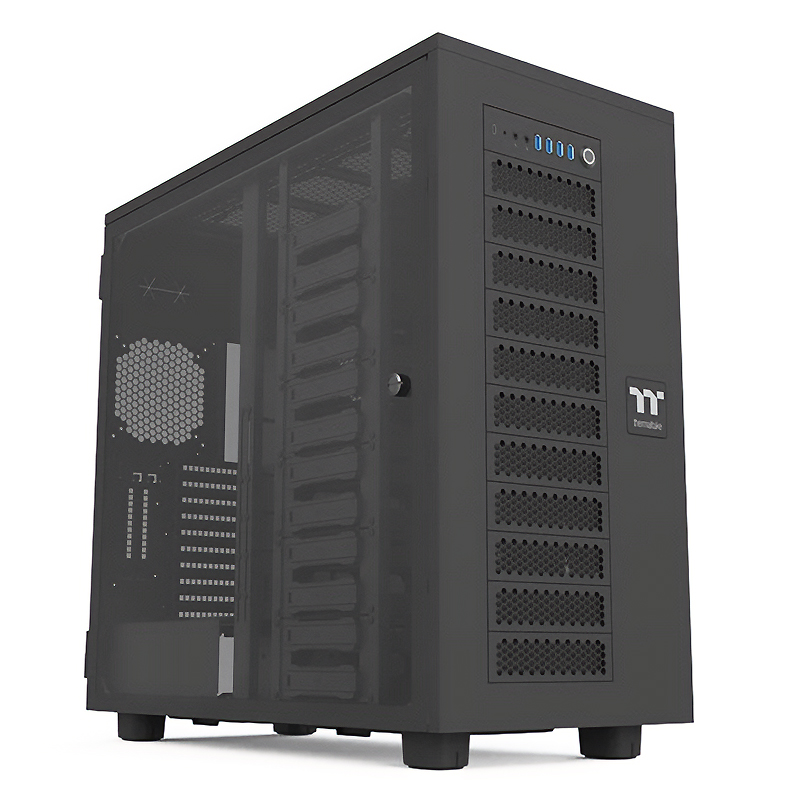

Thermaltake AX700 TG Super Tower XL-ATX Case - Black (CA-11B-00F1WN-00)
AX Series Super Tower (645×324.6×685 mm) with steel+TG side panels, SPCC construction, 2×5.25″, 12×3.5/2.5″ HDD cage, 6×3.5/2.5″ rear bays, 10 expansion slots, supports Mini‑ITX to XL‑ATX, USB‑C, USB‑3.0, HD audio, fan & radiator options.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Series
AX Series
Case Type
Super Tower
Dimensions
645 x 324.6 x 685 mm
(25.4 x 12.78 x 26.97 inch)
Side Panel
Steel + TG
Material
SPCC
Drive Bays
2 x 5.25’’
12 x 3.5’’ or 2.5’’ (HDD Cage)
6 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion Slots
10
Motherboard
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,
12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) , SSI-CEB, SSI-EEB
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan Support
Front: 3 x 120mm , 3 x 140mm
Top: 4 x 120mm , 4 x 140mm
Rear: 1 x 120mm , 1 x 140mm
Bottom: 2 x 120mm , 2 x 140mm
Right Side: 8 x 120mm , 8 x 140mm
Radiator Support
AIO-Radiator Support:
Front: 1 x 360mm (MAX), 1 x 420mm (MAX)
Top: 1 x 360mm (MAX), 1 x 420mm (MAX)
Rear: 1 x 120mm , 1 x 140mm
DIY- Radiator Support:
Front: 1 x 360mm (MAX), 1 x 420mm (MAX)
Top: 1 x 480mm (MAX), 1 x 560mm (MAX)
Rear: 1 x 120mm , 1 x 140mm
Clearance
CPU cooler height limitation: 190mm
VGA length limitation:
360mm(with HDD rack)
630mm(without HDD rack)
PSU length limitation: 220mm (with two bottom fans)
Product Name:
Thermaltake AX700 TG Super Tower XL-ATX Case - Black (CA-11B-00F1WN-00)
