SPECIFICATIONS:
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
16× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1 to Port 8
PoE Power Budget: 150 W
Dimensions( W x D x H )
11.6×7.1×1.7 in (294×180×44 mm)
Mounting
Rack Mountable/ Desktop
Max. Power Consumption
13.07 W (220 V/50 Hz with no PD connected)
173.88 W (220 V/50 Hz with 150 W PD connected)
Max. Heat Dissipation
44.438 BTU/h (220 V/50 Hz with no PD connected)
591.192 BTU/h (220 V/50 Hz with 150 W PD connected)
PERFORMANCE
Switching Capacity
32 Gbps
Packet Forwarding Rate
23.8 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
10 KB
SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE
PoE Management
Extend Mode
PoE Auto Recovery
Management Features
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Content

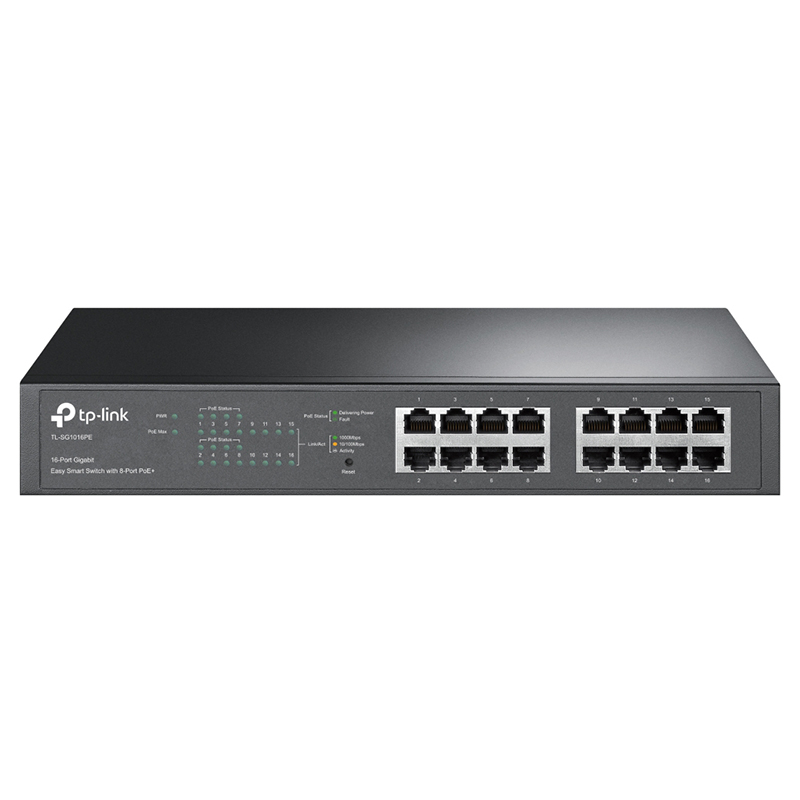

TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft® Windows® for running Utility
Environment
Operating Temperature: 0–45 ℃ (32–113 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% non-condensing
Storage Humidity: 5–90% non-condensing
