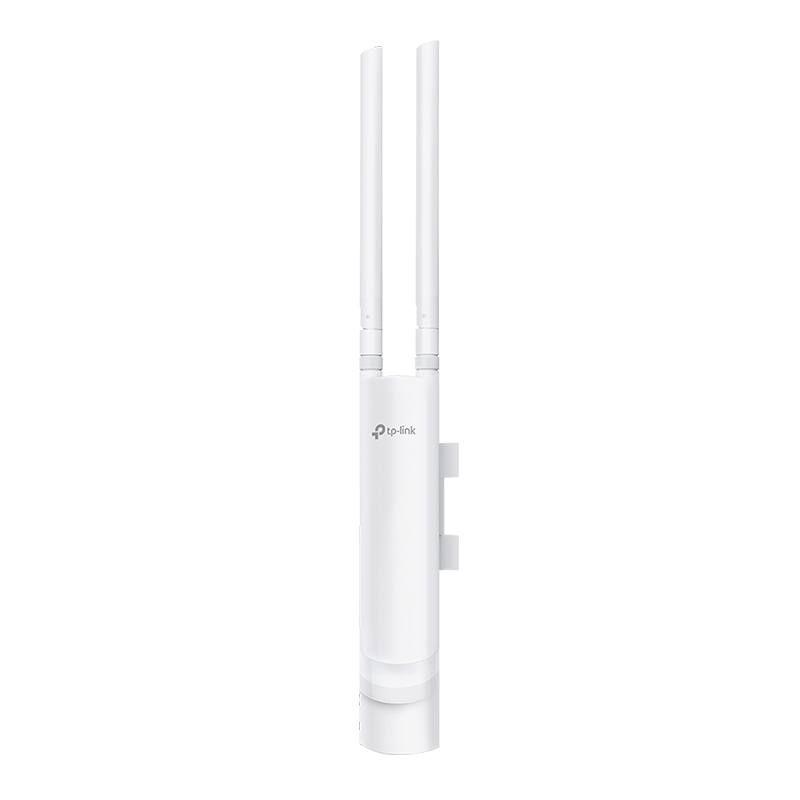

TP-Link 300Mbps Wireless N Outdoor Access Point - EU/3.20 (EAP110-Outdoor EU/3.20)

Interface

1× Fast Ethernet (RJ-45) Port (Support Passive PoE)

Button

Reset

Power Supply

24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use   Only)

Max. Power Consumption

3.12 W

Dimensions ( W x D x H )

1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)

Antenna

2× 3 dBi External Omni waterproof

Weatherproof Enclosure

IP65

Mounting

Pol / Wall Mounting (Kits included)

MANAGEMENT FEATURES

Omada App

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Require the use of an Omada controller via web or app.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

WIRELESS FEATURES

Concurrent Clients

100+**

**The actual capacity depends on the wireless environment and client traffic and is   generally less than the maximum number of client connections.

Wireless Standards

IEEE 802.11n/g/b

Frequency

2.4 GHz

Signal Rate

• 11n: Up to 300 Mbps (dynamic)

• 11g: Up to 54 Mbps (dynamic)

• 11b: Up to 11 Mbps (dynamic)

Wireless Functions

• Multiple SSIDs（Up to 8 SSIDs）

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control （Adjust Transmit Power on dBm）

• Seamless Roaming(802.11r)

• QoS(WMM)

• Load Balance

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

• CE: ≤20 dBm (EIRP)

• FCC: ≤22 dBm

OTHERS

Certification

CE, FCC, RoHS

Package Content

• 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Waterproof Rubber Insert

• Waterproof Antennas

• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment

• Operating Temperature: -30–65 ℃ (-22–149 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
