Please Check Modem/Router Compatibility with your Service Providers Before Purchasing
SPECIFICATIONS:
HARDWARE FEATURES |
|
|
| Interface | 1× USB-C Port for Power Supply 1× Gigabit WAN/LAN Port 1× Nano SIM Card Slot 1× Micro SD Card Slot 2× TS-9 Antenna Ports | Button | Power On/Off | Power Supply | 4680 mAh Rechargeable Battery Charge Voltage: 5V-3A, 9V-2A, 12V-1.5A | Network Type | US Version • 5G: N2/ N5/ N12/ N14/ N25/ N29/ N30/ N41/ N48/ N66/ N71/ N77 • 4G: FDD-LTE: B2/ B4/ B5 /B7 /B12 /B13 /B14 /B25 /B26 /B29 /B30 /B66 /B71 TDD-LTE: B41 /B46 /B48 EU Version • 5G: N1 /N3 /N5 /N7 /N8 /N20 /N28 /N38 /N40 /N41 /N71 /N75 /N76 /N77 /N78 • 4G: FDD-LTE: B1 /B3 /B5 /B7 /B8 /B20 /B28 /B32 /B71 TDD-LTE: B38 /B40 /B41 /B42 /B43 • 3G: HSPA+/HSPA/WCDMA: B1/B5/B8 | Data Rates | 5G • Downlink: 3.4 Gbps • Uplink: 900 Mbps LTE/4G • Downlink: 1.6 Gbps • Uplink: 200 Mbps | Dimensions ( W x D x H ) | 135 × 73.7 × 20.5 mm | Antenna | Internal Antenna | Micro SD Card Reader | Up to 2 TB (*SD card sold separately) | Screen Display | 2.4 inch TFT Touch Screen | WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax • 688 Mbps at 2.4 GHz • 2880 Mbps at 5 GHz • 2880 Mbps at 6 GHz | Frequency | 2.4 GHz, 5 GHz, 6 GHz | Wireless Modes | • 2.4 GHz Only • 5 GHz Only • 6 GHz Only • 2.4 GHz & 5 GHz • 2.4 GHz & 6 GHz | Wireless Security | Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering | DHCP | DHCP server, DHCP Client List | Transmission Power | 2.4G < 20dbm, 5G < 23dbm | VPN |
| VPN Item | Wireguard | OTHERS |

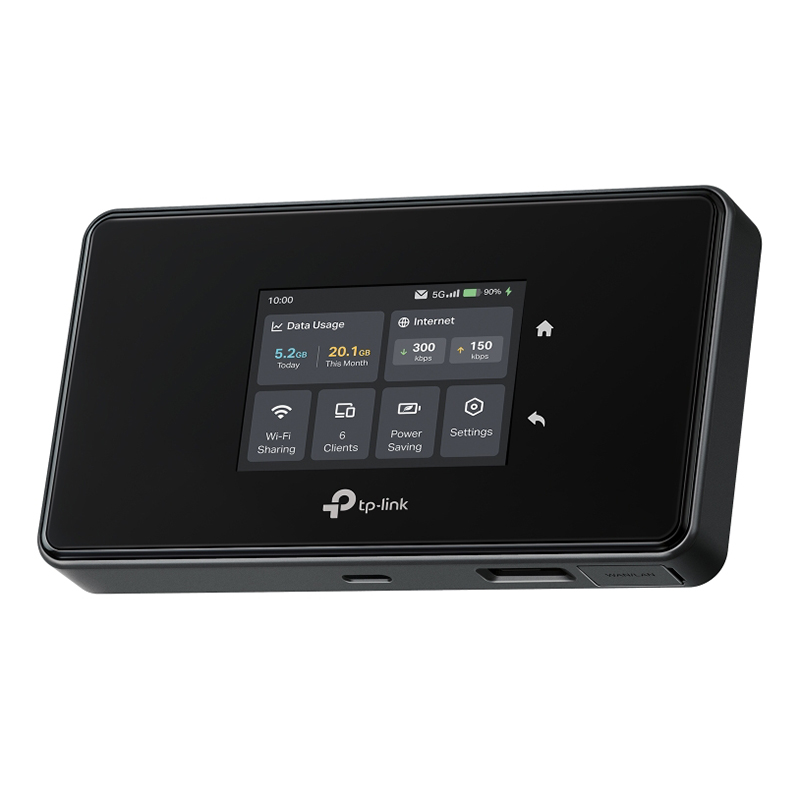

| Certification | CE, RoHS | Package Content | 5G AXE3600 Mobile Router M8550 Power Adapter USB-C Cable 4680 mAh Battery Quick Installation Guide | System Requirements | Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone | Power Supply | 5V-3A, 9V-2A, 12V-1.5A |
|
