SPECIFICATIONS:
HARDWARE FEATURES
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan quantity
Fanless
Power consumption
65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)
External power supply
External Power Adapter(Output: 48VDC / 1.25A)
POE ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Backbound bandwidth
16Gbps
MAC address table
4K
Dimensions ( W X D X H )
6.7*3.9*1.1 in. (171*98*27 mm)
Max power consumption
5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected)
Max heat dissipation
18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected)
SOFTWARE FEATURES
Transmission method
Store-And-Forward
Advanced functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification
CE, FCC, RoHS
Package contents

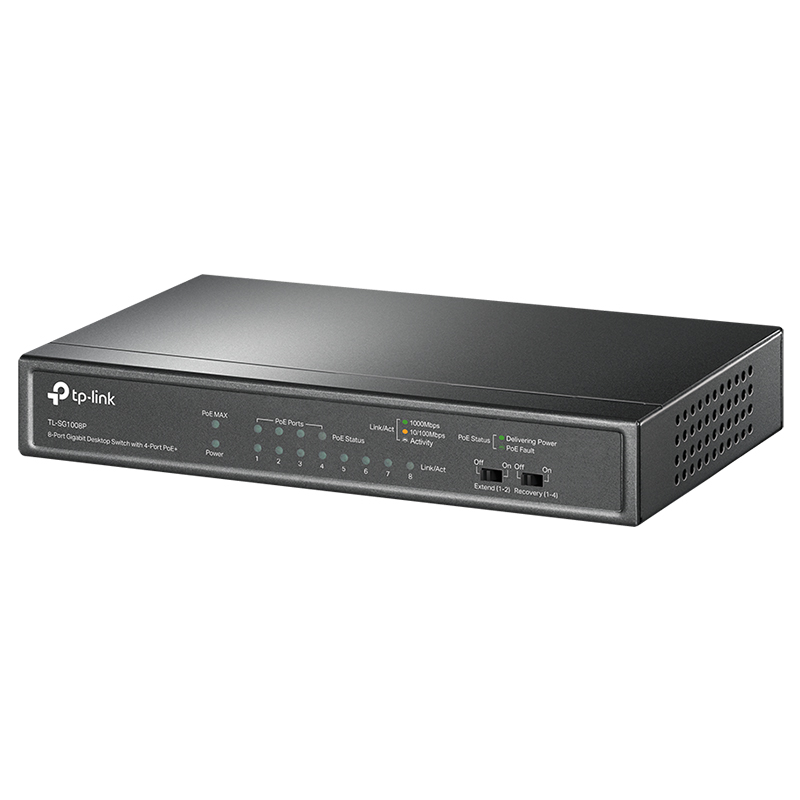

TL-SG1008P, Power Adapter, Installation Guide
Consumption
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
