SPECIFICATIONS:
HARDWARE FEATURES
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ξ© STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan Quantity
1
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Packet Forwarding Rate
11.904 Mpps
PoE Ports (RJ45)
Standard: 802.3af/at compliant
PoE+ Ports: 8 Ports
Power Supply: 153W
Mac Address Table
4K
Buffer Size
1.5Mbits
Jumbo Frame
16 KB
Switching Capacity
16Gbps
Dimensions ( W x D x H )
11.6*7.1*1.7 in. (294*180*44 mm)
Mounting
Desktop/Rack Mountable
Max. Power Consumption
β’ 172.49 W(110V/60Hz. with 153W PD connected)
β’ 8.77 W(220V/50Hz. no PD connected)
Max. Heat Dissipation
β’ 29.91 BTU/h(no PD connected)
β’ 588.19 BTU/h(with 153W PD connected)
SOFTWARE FEATURES
Advanced Features
β’ Compatible With IEEE 802.3af/at Compliant PDs
β’ Priority Function
β’ Mac Address Auto-Learning And Auto-Aging
β’ IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
β’ Extend Mode Button (Ports 1β2, Up to 250 m PoE power supply and data transmission)
β’ PoE Auto Recovery (Ports 1-8)
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Content

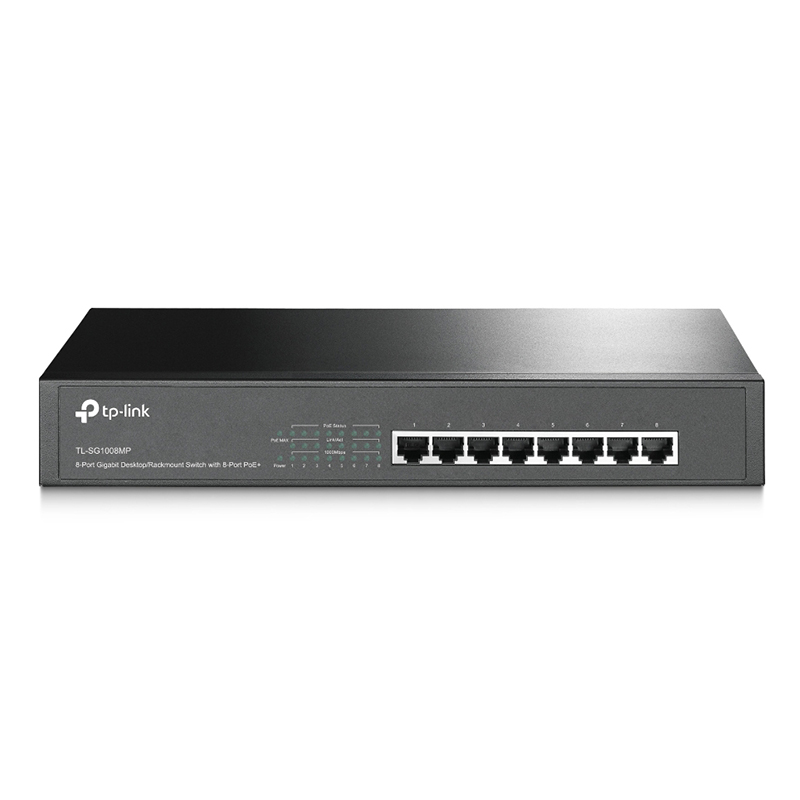

TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment
Operating Temperature: 0β~50β (32β~122β)
Storage Temperature: -40β~70β (-40β~158β)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
