WIRELESS |
|
Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
Working Modes | Router Mode Access Point Mode |
SECURITY |
|
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
HARDWARE |
|
Processor | 1.2 GHz CPU |
Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
Power | 12 V ⎓ 1 A |
SOFTWARE |
|
Protocols | IPv4 IPv6 |
OneMeshâ„¢ | OneMeshâ„¢ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMeshâ„¢ helps you create a more flexible network that covers your entire home with TP-Link OneMeshâ„¢ products. |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management Features | Tether App Webpage |
OTHER |
|
Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP DNS DNS • Port: 53   Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP App management Manage and configure device through app • Port: 20002   Protocol: UDP Alexa service Detect Alexa-enabled devices in the LAN • Port: 5353   Protocol: UDP |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA |
|
WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBmï¼›11a 54Mbps:-78dBmï¼› 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbmï¼› |
PHYSICAL |
|
Dimensions (W×D×H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |

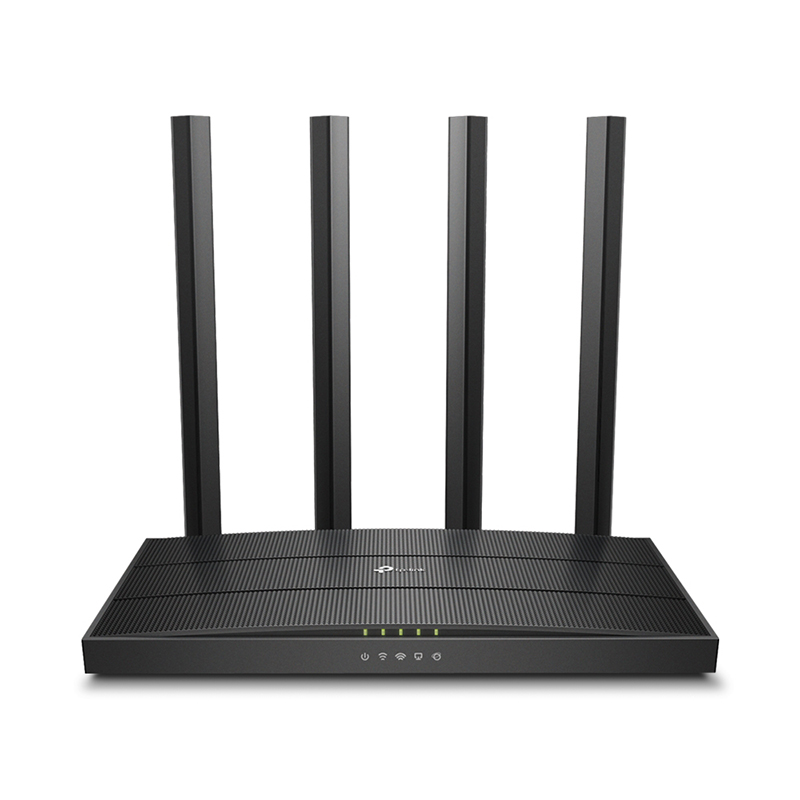

Package Content | Wi-Fi Router Archer A6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
