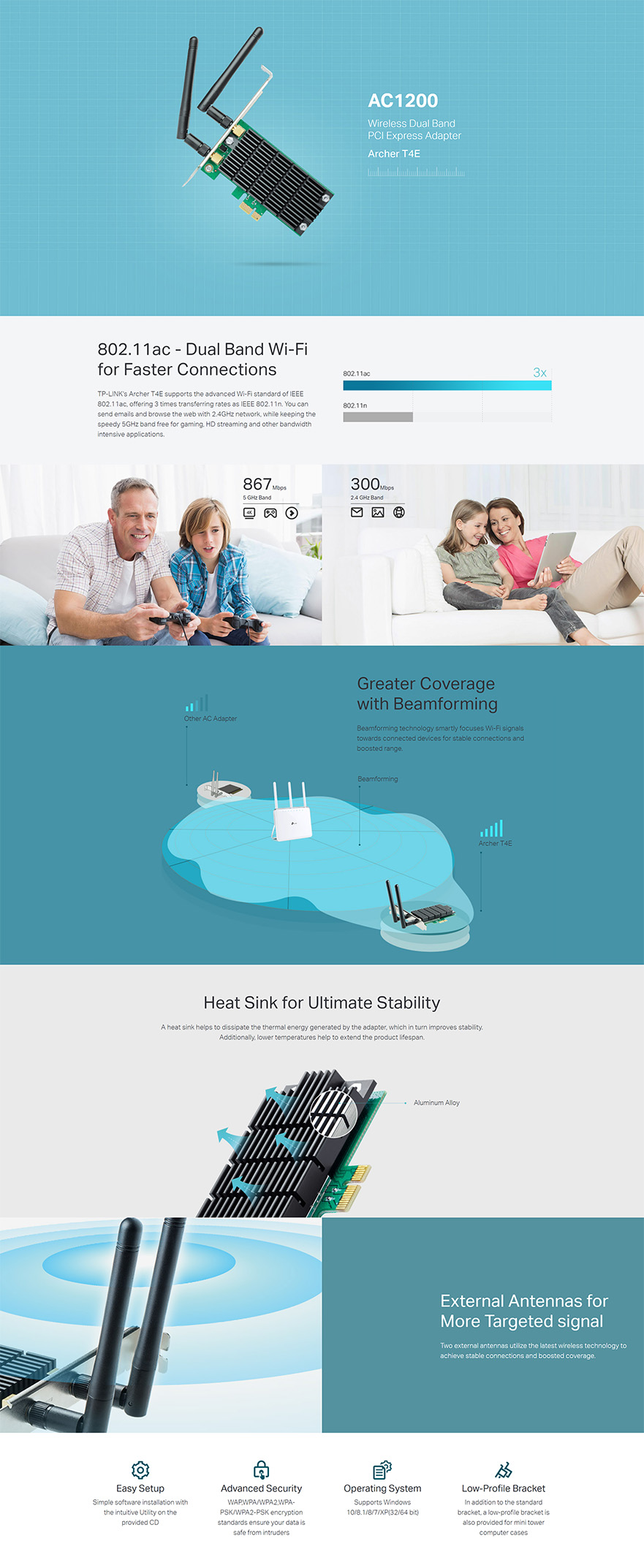

TP-Link AC1200 Wireless PCIe Adapter - (Archer T4E)

Dimensions ( W x D x H )

4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)

Antenna Type

2 Dual Band Detachable Antennas

Wireless Standards

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/g/b 2.4 GHz

Signal Rate

5 GHz

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz

11ac HT80: -59.5 dBm

11ac HT40: -63 dBm

11ac HT20: -68 dBm

11n HT40: -70 dBm

11n HT20: -73 dBm

11a 54Mbps: -76 dBm

11a 6Mbps: -92 dBm

2.4GHz

11n HT40: -67.5 dBm

11n HT20: -70 dBm

11g 54Mbps: -72 dBm

11b 11Mbps: -86.5 dBm

Transmit Power

5 GHz: 24 dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz: 25 dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Certification

CE, FCC, RoHS

Package Contents

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E, Low-Profile Bracket, Quick Installation Guide, Resource CD

System Requirements

Windows 10/8.1/8/7/XP (32/64bit)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃   (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
