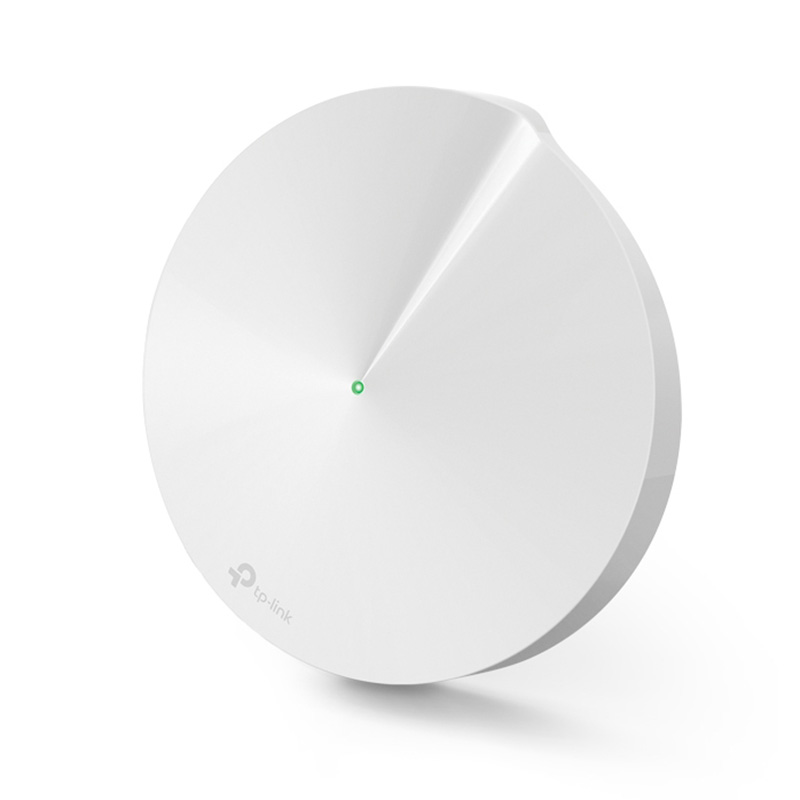

TP-Link AC2200 Smart Home Mesh Wi-Fi System (Deco M9 Plus 1-Pac)

AC adapter input

100-240V ~ 50/60Hz 0.8A

AC adapter output

12V ⎓ 2A

HARDWARE FEATURES

Ports

2 * LAN/WAN Gigabit Ethernet Ports

1 * USB 2.0 Port (reserved)

1 * Power Port

Button

1 Reset button on the underside

External Power Supply

12 V/2 A

Dimensions

144 mm × 46 mm

Antenna Type

8 internal antennas per Deco unit

WIRELESS FEATURES

Wireless Standards

IEEE 802.11 ac/n/a 5 GHz

IEEE 802.11 b/g/n 2.4 GHz

Bluetooth 4.2

ZigBee HA1.2

Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz (1)

867 Mbps at 5 GHz (2)

400 Mbps at 2.4 GHz

Transmit Power

FCC: <30 dBm

CE: <20 dBm (2.4 GHz)

<23 dBm (5 GHz)

Wireless Security

WPA-PSK/WPA2-PSK

Advanced Functions

● Router/ Access Point Mode

● Optional Ethernet Backhaul

● TP-Link Mesh Technology:

MU-MIMO

Auto Path Selection

Self-Healing

AP Steering

Band Steering

Beamforming

SOFTWARE FEATURES

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE

Management

Local Management, Remote Management

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Advanced Features

Parental Controls

3-Year Free Built-In Antivirus

QoS (Quality of Service)

Reporting

Assisted Setup

Works with Alexa & IFTTT

Automation (for smart home devices)

Guest Network

2.4 GHz guest network * 1

5 GHz guest network * 1

OTHERS

Package Contents

Deco M9 Plus (1-pack):

1 Deco unit

1 RJ45 Ethernet Cable

1 Power Adapter

Smartphone/Tablet Requirements

iOS 9.0 or later

Android 4.4 or later

Bluetooth 4.0 or later

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
