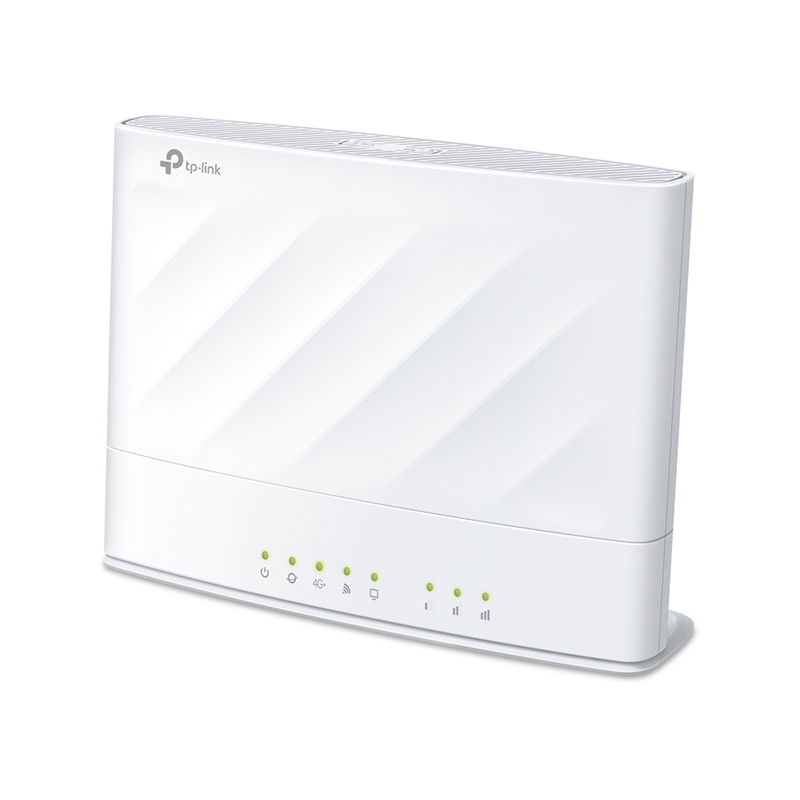

TP-Link Archer MX700 4G+ AX1500 Dual Band Wi-Fi LTE Router (Archer MX700)

Network Mode

4G：

FDD:B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz )

TDD:B38/B40/B41 (2600/2300/2500 MHz)

3G：

B1/B5/B8 (2100/850/900 MHz)

Speed

4G+ Cat 6：

300 Mbps Download Speed

50 Mbps Upload Speed

SIM Type

Nano SIM Card

HARDWARE FEATURES

Interface

1× Gigabit LAN/WAN Port + 3× Gigabit LAN Ports

Dimensions ( W x D x H )

7.86×5.85×2.66 in (199.7×148.6×67.5 mm)

Antenna

2× Internal 4G/3G Antennas + 2× Internal Wi-Fi Antennas + 2× External Antenna Ports

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz

Reception Sensitivity

5 GHz:

11a 54M: -77 dBm

11ax HE20:-64 dBm

11ax HE40: -61 dBm

11ax HE80:-59 dBm

11ac VHT20: -69 dBm

11ac VHT40: -66 dBm

11ac VHT80 : -63 dBm

11n HT20: -74 dBm

11n HT40: -71 dBm

2.4 GHz:

11g 54M: -78 dBm

11n HT20: -75 dBm

11n HT40: -72 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM

Wireless Security

64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal

SOFTWARE FEATURES

Quality of Service

Bandwidth Control

Security

IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features

TP-Link Cloud, Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

Administration

Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Certification

CE, RoHS

Package Content

4G+ Cat6 300 Mbps LTE AX1500 Wireless Dual Band Gigabit Router Archer MX700

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser

*You are recommended to use the latest version

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
