WIRELESS |
|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 3 Bedroom Houses Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
Working Modes | Router Mode AP Mode |
SECURITY |
|
Network Security | HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | PPTP ServerN OpenVPN ServerN |
WiFi Encryption | WPA/WPA2 WPA3 WPA/WPA2-PSK |
HARDWARE |
|
Ethernet Ports | 1× Gigabit WAN Port 1× Gigabit LAN Port |
Buttons | WPS Button Reset Button |
SOFTWARE |
|
Protocols | IPv4 IPv6 |
Service Kits | HomeShield |
EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPPoE + Dynamic IP PPPoE + Static IP L2TP + Dynamic IP L2TP + Static IP PPTP + Dynamic IP PPTP + Static IP |
Quality of Service | QoS by Device |
Cloud Service | FOTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Fowarding Port Triggering DMZ UPnP |
IPTV | Profile Bridge Custom Allowed range of VLAN ID |
DHCP | DHCP Server Address Reservation DHCP Client List |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage |
OTHER |
|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40~60℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% |
TEST DATA |
|
WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) |
WiFi Reception Sensitivity | 5GHz-band1: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 5GHz-band2: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 5GHz-band3: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
PHYSICAL |
|
Dimensions (W×D×H) | 8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm) |

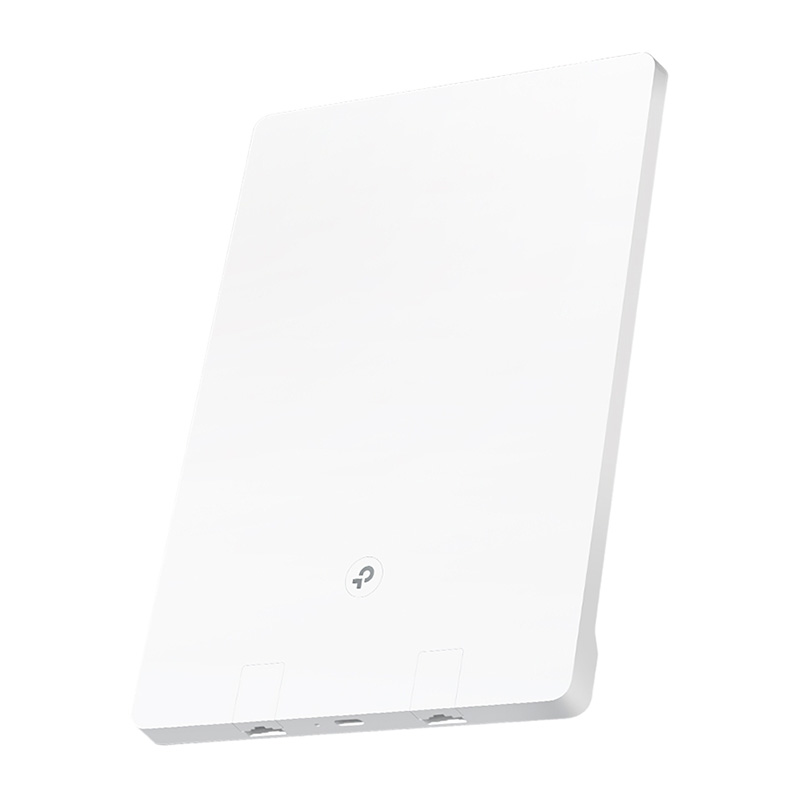

Package Contents | Wireless Router Archer Air R5 Quick Installation Guide Power Adapter Plastic Bracket Gigabit Network Cable Installation Accessories |
OTHERS |
|
Notes | 1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition. 2. 8mm refers to the thickness of the majority of the device. Some portions may exceed this size out of necessity. 3. TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. 4. Pictures are for reference only. If there are any inconsistencies between the product image and the actual product, the actual product shall prevail. 5. Use of Wi-Fi 6 / 802.11ax and DL/UL OFDMA requires compatible clients. 6. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. |
