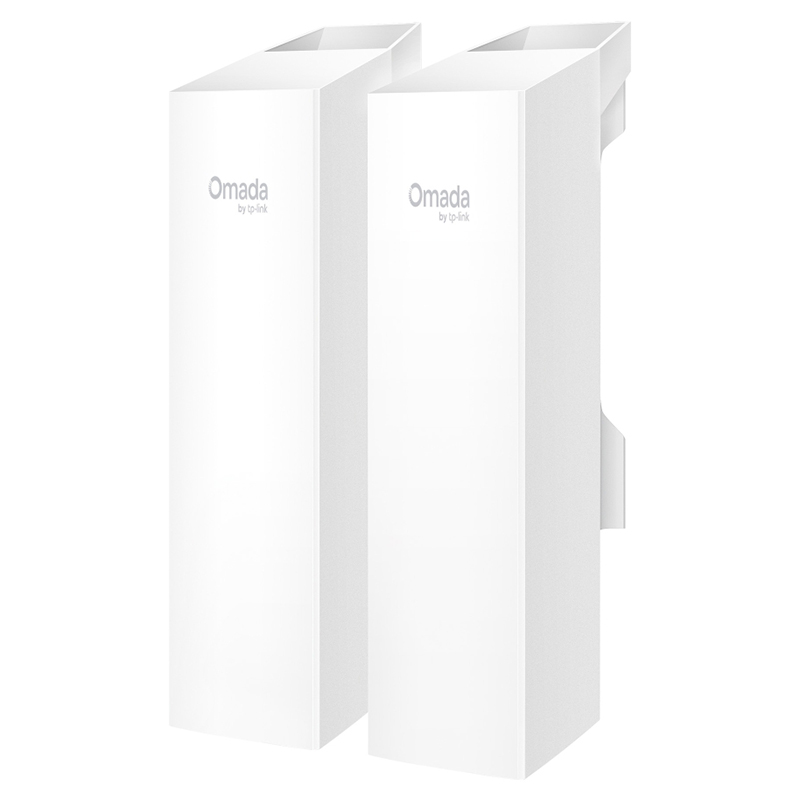

TP-Link Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge (EAP100-Bridge KIT)

Interface

3x 10/100 Mbps Ethernet Ports

Button

Reset

Power Supply

12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE

Max. Power Consumption

4.8 W

Dimensions ( W x D x H )

3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

Antenna

Internal 2×2 Dual-polarized directional MIMO antennas

2.4 GHz: 8.0 dBi

Horizontal:70°, Vertical: 70°

Weatherproof Enclosure

IP65

Mounting

Pole and wall mounting ( Pole accessories included)

WIRELESS FEATURES

Coverage

500 m (0.31 mi)*

*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

2.4 GHz: Up to 300 Mbps

Wireless Functions

• MIMO: 2.4G 2 × 2 MIMO

• Mesh

• Beamforming

• Channel: 1-11 (US); 1-13 (EU)

• Multiple SSIDs:8

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• Static IP/Dynamic IP

• Rate Limit

• Guest Network

• Enable/Disable Wireless Radio

• Enable/Disable SSID Broadcast

Wireless Security

• VLAN

• Rogue AP Detection

• Maximum number of MAC Filter: 4,000

• Wireless Encryption

Transmission Power

• CE:

<20dBm (2.4 GHz, EIRP);

• FCC:

<22dBm (2.4 GHz)

MANAGEMENT FEATURES

Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

• Omada App

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

Yes

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Content

• EAP100-Bridge KIT

• Installation Guide

• Pole Mounting Kit

Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing
