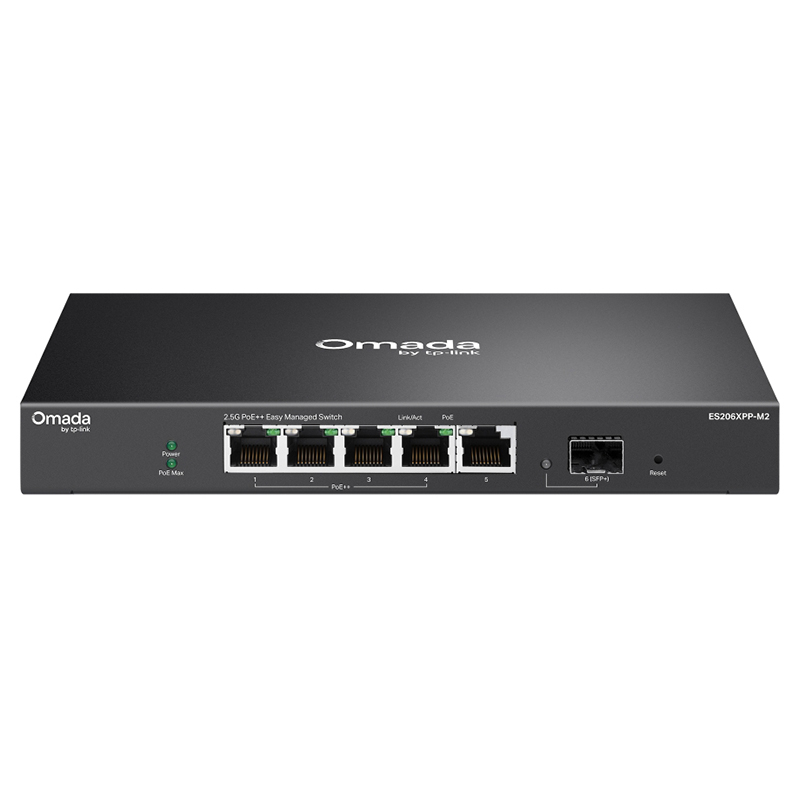

TP-Link Omada 5 Port Easy Managed Switch with 4 Port PoE++ (ES206XPP-M2)

Interface

• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)

• 1× 10 Gbps SFP+ Slot

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5 VDC / 2.43 A)

PoE Ports (RJ45)

• Standard: 802.3af/at/bt PoE++ compliant

• PoE Ports: 4 Ports

• PoE Budget: 120W available for all PoE++ ports, 90W max per port

• Fast PoE & Perpetual PoE

• PoE Auto Recovery*

* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

Dimensions ( W x D x H )

8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)

Surge Protection

±6 kV

PERFORMANCE

Packet Buffer Memory

640 KB

Jumbo Frame

10 KB

Switching Capacity

45 Gbps

Packet Forwarding Rate

33.48 Mpps

MAC Address Table

16K

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control*

* Port-based/802.1p/DSCP QoS are supported under Standalone Mode.

L2 Features

• Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Unified Configuration*

* These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

OTHERS

Certification

FCC, CE, RoHS

Package Content

• ES206XPP-M2

• Power Adapter

• Power Cord

• Rubber Feet

• Installation Guide

Environment

• Operating Temperature: -5℃~40℃ (23℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
