SPECIFICATIONS:
HARDWARE FEATURES
Interface
• 4× 10/100/1000 Mbps RJ45 Ports
• 1× Gigabit SFP/RJ45 Combo Slot
• 1× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
• DIN-rail mounting
• Wall mounting
Power Supply
9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H )
5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection
• ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity
12 Gbps
Packet Forwarding Rate
8.93 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
• Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
Store-And-Forward
MANAGEMENT FEATURES
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
OTHERS
Certification
FCC, CE, RoHS
Package Content

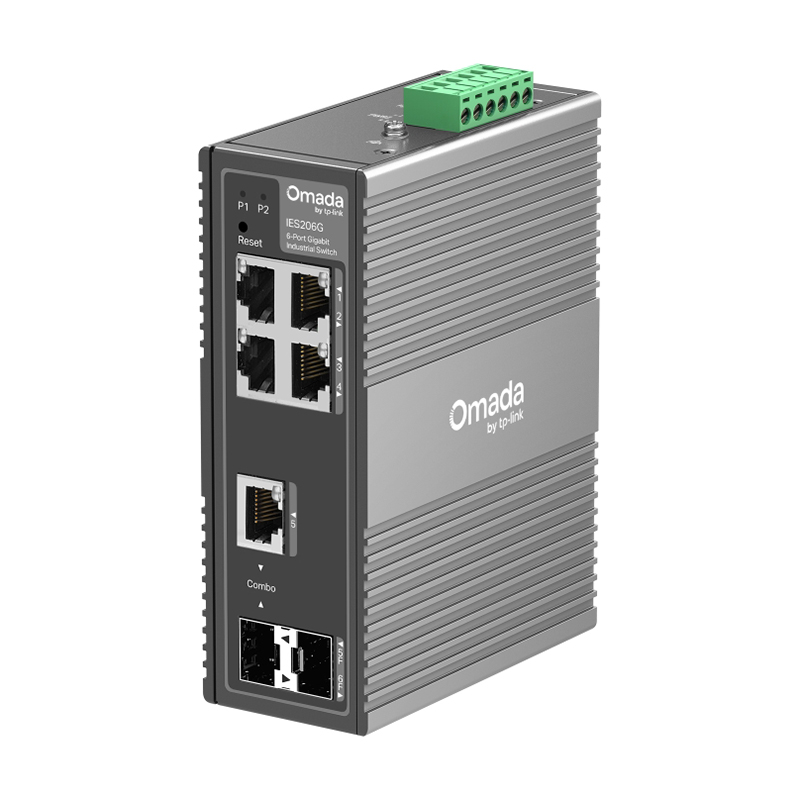

• IES206G
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide
Environment
• Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing
