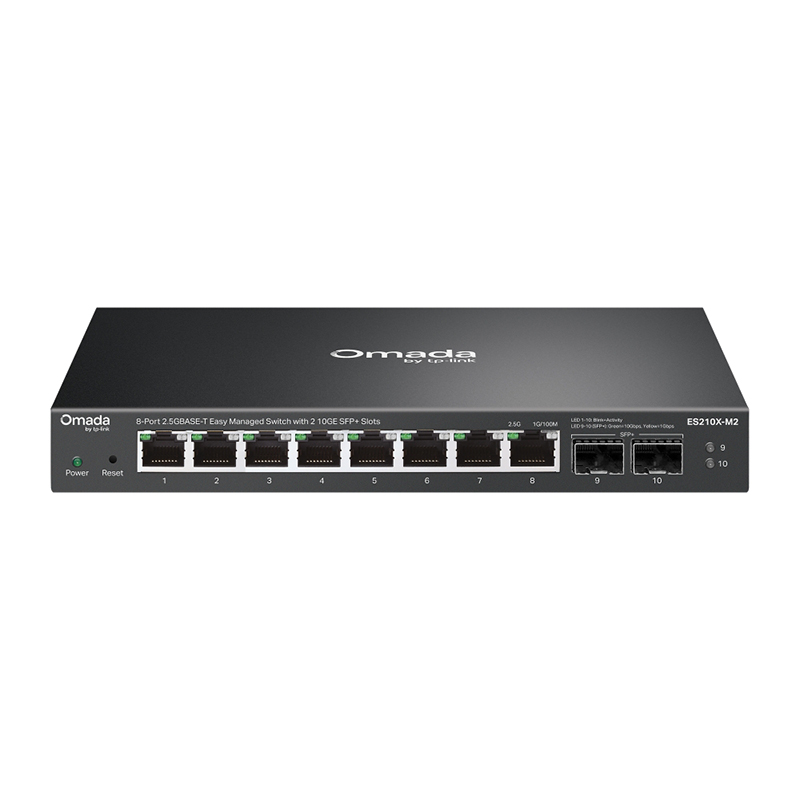

TP-Link Omada 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots (ES210X-M2)

Interface

• 8× 2.5 Gbps RJ45 Ports

• 2× 10 Gbps SFP+ Slots

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop

• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 12 VDC / 1.5 A)

Dimensions ( W x D x H )

8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)

Surge Protection

±6 kV

PERFORMANCE

Switching Capacity

80 Gbps

Packet Forwarding Rate

59.52 Mpps

MAC Address Table

16K

Packet Buffer Memory

640 KB

Jumbo Frame

10 KB

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control△

L2 Features

• Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT FEATURES

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Unified Configuration

OTHERS

Certification

FCC, CE, RoHS

Package Content

• ES210X-M2

• Power Adapter

• Rubber Feet

• Installation Guide

Environment

• Operating Temperature: -5℃~40℃ (23℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
