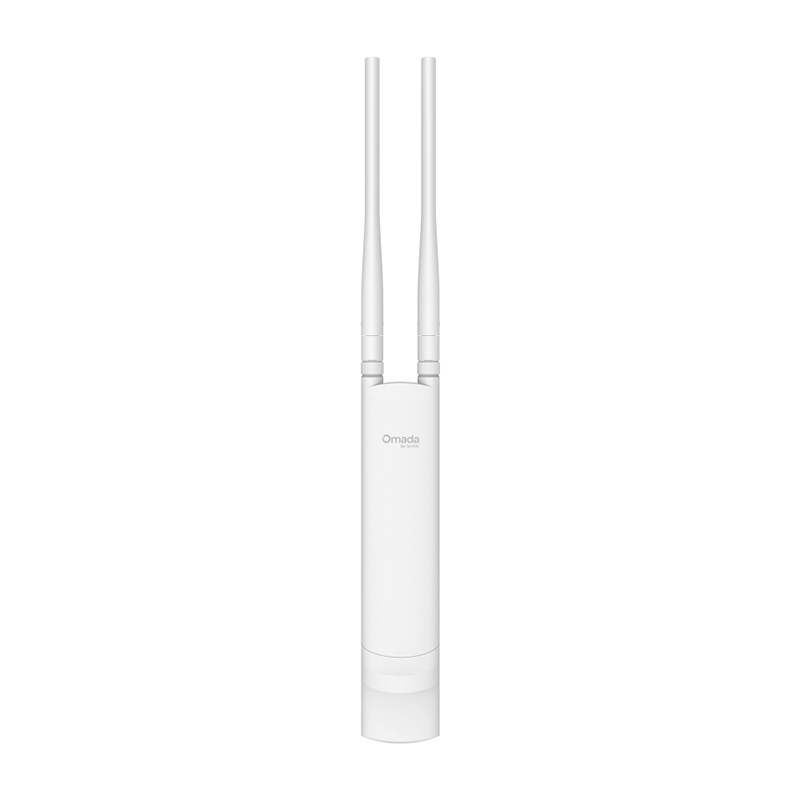

TP-Link Omada AC1200 Wireless Dual Band Gigabit Outdoor Access Point - EU/3.20 (EAP225-Outdoor EU/3.20)
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
MANAGEMENT FEATURES
Omada App
Yes
Centralized Management
β’ Omada Cloud-Based Controller
β’ Omada Hardware Controller
β’ Omada Software Controller
Cloud Access
Yes. Require the use of an Omada controller.
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
HARDWARE FEATURES
Interface
1Γ Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button
Reset
Power Supply
β’ 802.3af PoE
β’ 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption
10.5W
Dimensions ( W x D x H )
1.8 Γ 1.1 Γ 8.5 in (46 Γ 26.7 Γ 214.9 mm)
(without antenna & mounting kit)
Antenna
2 Dual-Band Omni Antennas (External Detachable)
β’ 2.4 GHz: 2Γ 3 dBi
β’ 5 GHz: 2Γ 5 dBi
Weatherproof Enclosure
IP65
Mounting
Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4GHz, 5GHz
Signal Rate
β’ 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
β’ 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
β’ 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
β’ 802.11b: 1, 2, 5.5, 11Mbps
β’ 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
β’ Multiple SSIDsοΌUp to 16 SSIDs, 8 for each bandοΌ
β’ Enable/Disable Wireless Radio
β’ Automatic Channel Assignment
β’ Transmit Power Control οΌAdjust Transmit Power on dBmοΌ
β’ QoS(WMM)
β’ MU-MIMO
β’ Seamless Roaming(802.11k/v/r)*
β’ Omada Mesh*
β’ Airtime Fairness
β’ Beamforming
β’ Band Steering
β’ Load Balance
β’ Rate Limit
β’ Reboot Schedule
β’ Wireless Schedule
β’ Wireless Statistics based on SSID/AP/Client
*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
Wireless Security
β’ Captive Portal Authentication*
β’ Access Control
β’ Wireless Mac Address Filtering
β’ Wireless Isolation Between Clients
β’ SSID to VLAN Mapping
β’ Rogue AP Detection
β’ 802.1X Support
*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
