HARDWARE FEATURES |
|
Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
Button | Reset |
Power Supply | • 802.3at PoE • 48V Passive PoE |
Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |
Dimensions ( W x D x H ) | 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
Antenna | Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical |
Bluetooth | Yes |
Weatherproof Enclosure | IP68 |
Mounting | Optional bracket accessory APM-110: Supports vertical ±180°, horizontal ±45° adjustment Optional bracket accessory APM-100: Supports vertical ±45°, horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately |
WIRELESS FEATURES |
|
Coverage | • 2.4 GHz: 200+ m* • 5 GHz: 500+ m* |
Concurrent Clients | 250+** |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
Frequency | 2.4 GHz, 5 GHz |
Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
Wireless Functions | • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP |
Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
MANAGEMENT FEATURES |
|
Omada App | Yes |
Restore & Backup | Yes |
NTP | Yes |
Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP |
Cloud Access | Yes, through • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Yes |
SSH | Yes |
Web-based Management | Yes |
Multi-site Management | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS |
|
Certification | CE, FCC, RoHS |

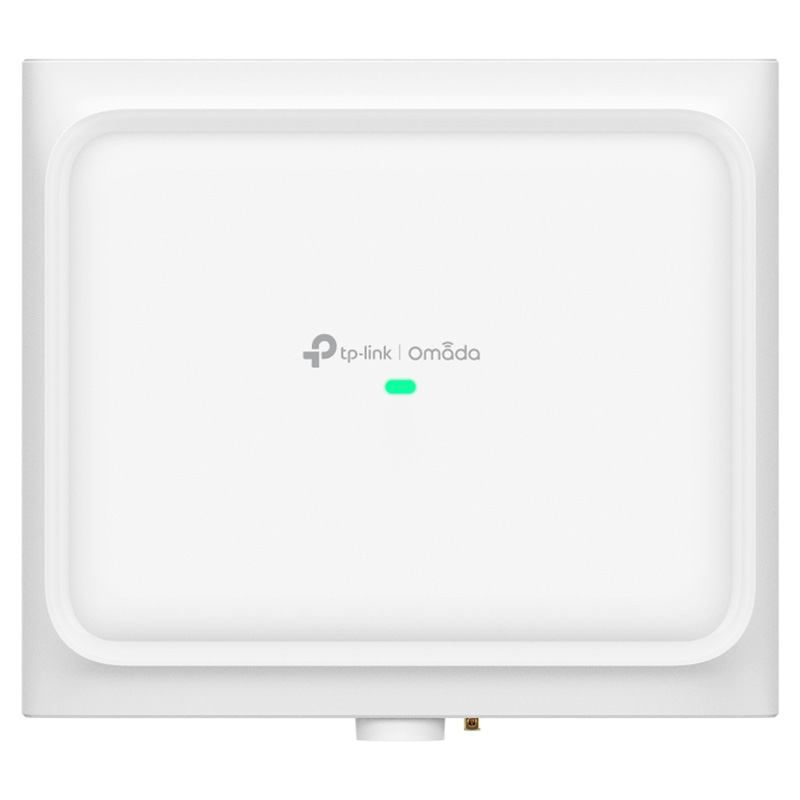

Package Content | • Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
