SECURITY |
|
Access Control | Source/Destination IP Based Access Control |
Filtering | • Web Group Filtering*5 • URL Filtering • Web Security*5 |
ARP Inspection | • Sending GARP Packets • ARP Scanning*5 • IP-MAC Binding |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES |
|

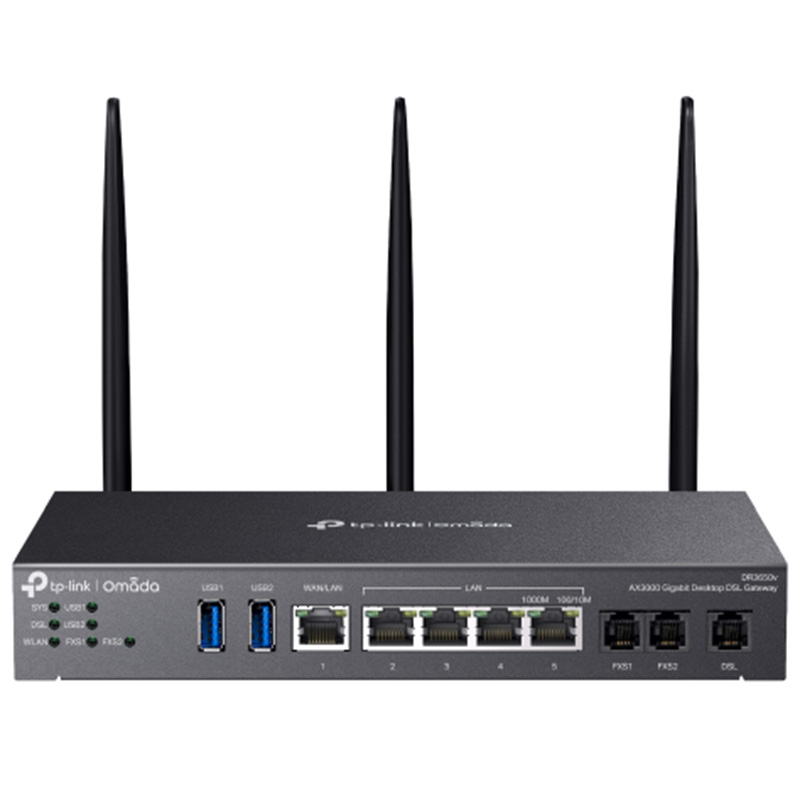

Interface | • 3 × RJ11 Ports (2 × FXS, 1 × DSL) • 5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports) • 2 × USB 3.0 Ports |
Button | Reset Button |
Power Supply | 12VDC / 3.3A Power Adapter |
Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
Flash | 256 MB NAND |
DRAM | 512 MB DDR4 |
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
Antenna | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
Mounting | Desktop/Wall-mounting |
Max. Power Consumption | 30.6W(with 2 USB 3.0 connect), 20.6W(without 2 USB 3.0 connect) |
PERFORMANCE |
|
GRE | • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps |
WireGuard VPN | 393.5Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 5,100 |
NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
IPsec VPN Throughput | • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps |
OpenVPN | 129.3Mbps |
L2TP VPN Throughput | • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps |
PPTP VPN Throughput | • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps |
SSL VPN Throughput | 126.7Mbps |
66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
WIRELESS FEATURES |
|
Advanced Features | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
Guest Network | Support |
BASIC FUNCTIONS |
|
WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
MAC Clone | Modify WAN Address |
DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FEATURES |
|
Advanced Routing | • Static Routing • Policy Routing • RIP*5 • OSPF*5 |
Bandwidth Control | IP-Based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Session Limit | IP-Based Session Limit |
VPN |
|
SSL VPN | 50 Tunnels |
IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)*6 • 50 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)*6 • 50 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (5)*6 • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
WireGuard VPN | 20 Tunnels |
AUTHENTICATION |
|
Web Authentication | • No Authentication • Simple Password*6 • Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6) • External Radius Sever • External Portal Sever*6 • LDAP |
MANAGEMENT FEATURES |
|
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of Omada Cloud-Based Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported) |
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS |
|
Certification | CE, RoHS |
Package Content | • DR3650v • Power Adapter • Ethernet Cable • Phone Cable • Quick Installation Guide |
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
