HARDWARE FEATURES |
|
Interface | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
Button | Reset |
Power Supply | 802.3at PoE |
Max. Power Consumption | 18.4W (for PoE+) |
Dimensions ( W x D x H ) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |
Antenna | • 2.4 GHz: 2 × 4.5 dBi, external omnidirectional antennas 2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas 2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°) Note: The gains above are the single-antenna peak gains. |
Bluetooth | BLE 5.2 |
Weatherproof Enclosure | IP66 |
Mounting | Pole/Wall Mounting (Kits included) |
WIRELESS FEATURES |
|
Wireless Standards | IEEE 802.11a/g/b/n/ac/ax/be |
Frequency | 2.4 GHz, 5 GHz |
Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
Wireless Functions | • 4k-QAM • OFDMA • Multiple SSIDs: 16 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MLO • Omada Mesh* • Seamless Roaming(802.11k/v/r)* • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP * Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. |
Wireless Security | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE * Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors. |
Transmission Power | • CE: (EIRP) 2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C • FCC: (Conducted Power) 2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
MANAGEMENT FEATURES |
|
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Require the use of an Omada controller. |
Email Alerts | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Yes |
SSH | Yes |
Web-based Management | Yes |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS |
|
Certification | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |

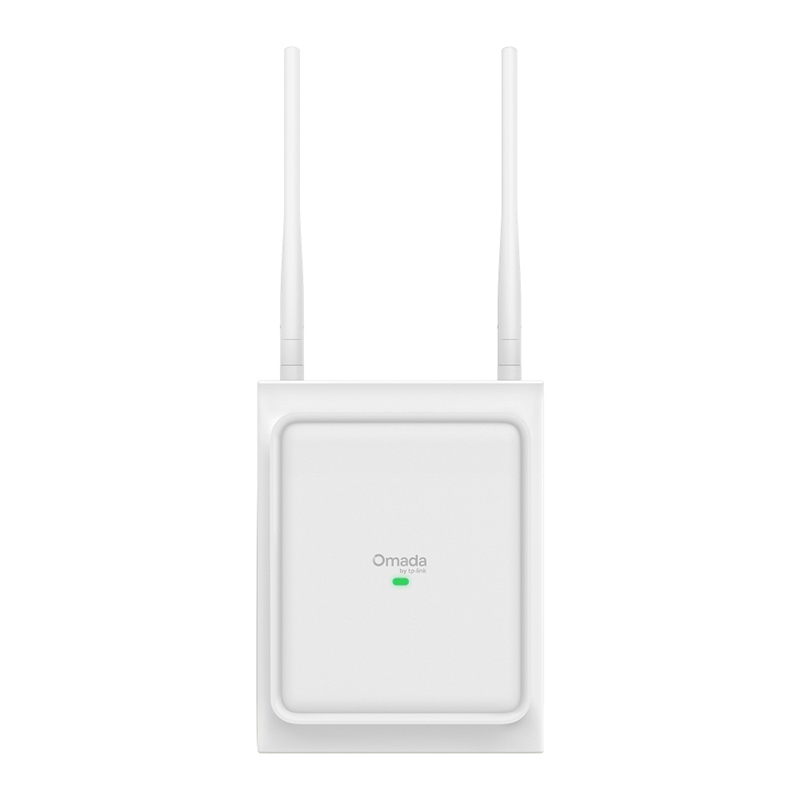

Package Content | • Access Point EAP725-Outdoor • Waterproof Kit • Mounting Kit • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | • Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉) • Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉) • Operating Humidity: 10 to 90% RH non-condensing • Storage Humidity: 5 to 90% RH non-condensing |
Weight | Main Unit: 1.33 kg |
