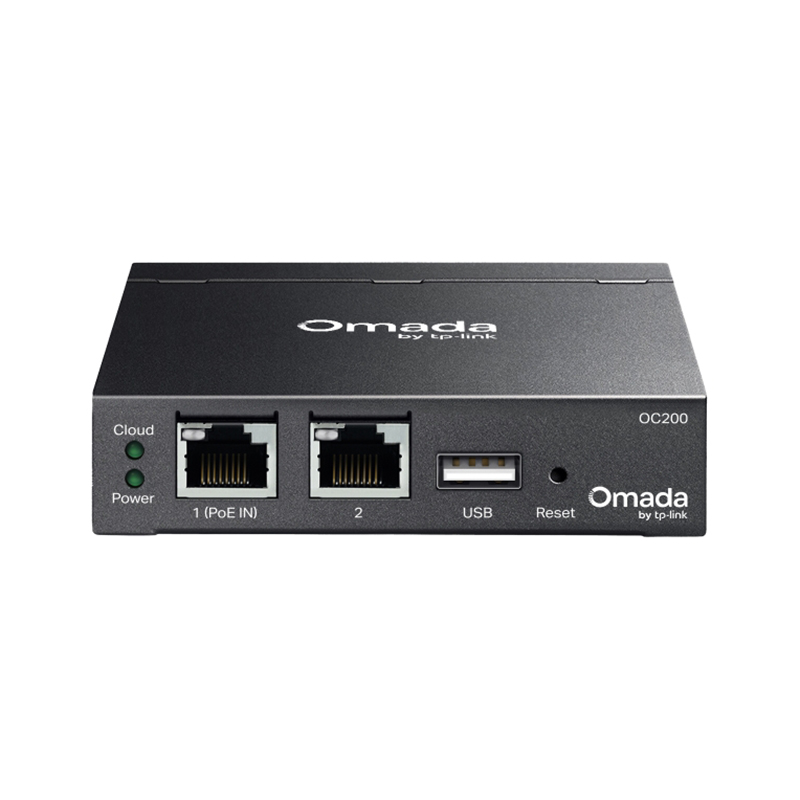

TP-Link Omada Cloud Controller - UN/3.0 (OC200 UN/3.0)

Omada App

Yes

Centralized Management

Recommended for managing 25 Omada devices*

Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the   Omada device models supported by OC200

*The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions.

Cloud Access

Yes

L3 Management

Yes

Multi-site Management

Yes

Management Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

HARDWARE FEATURES

Interface

• 2× 10/100/1000 Mbps Ethernet Port

• 1× USB 2.0 Port

• 1× Micro USB Port (only for power supply)

Power Supply

802.3af/at PoE or Micro USB（DC 5 V/Minimum 1 A）

Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

OTHERS

Certification

CE, FCC, RoHS

Package Content

• Omada Hardware Controller OC200

• Quick Installation Guide

• Ethernet Cable

System Requirements

Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment

• Operating Temperature: -5–50℃ (23–122℉)

• Storage Temperature: -40–70℃ (-40–158℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
