TP-Link Omada PoE++ Injector (POE170S)

$59.0

Was: ~~$62.0~~

4% Off!

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery: Question Mark

Next Day Dispatch - Order within 5hrs and 29mins

- +

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

Product Name:

TP-Link Omada PoE++ Injector (POE170S)
Model Number:

POE170S
Brand:

TP-Link
Warranty Period:

3 Year

Description

NOTE: *POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.

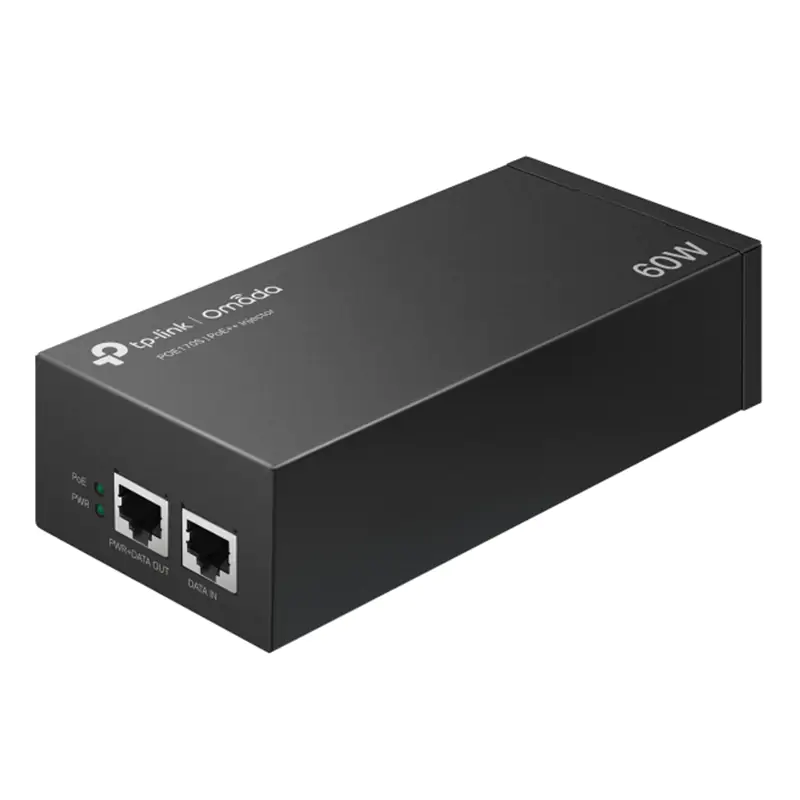

TP-Link Omada PoE++ Injector
The Omada PoE++ Injector POE170S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.

SPECIFICATIONS:

HARDWARE FEATURES
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* * POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
Interface	• 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket
Network Media	• 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Max. Power Consumption	• Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function	• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
LED	• Power • PoE
Dimensions ( W x D x H )	6.1×2.8×1.7 in (155×70×42 mm)
GENERAL
Material	Metal Casing
OTHERS
Certification	FCC, CE, RoHS
Package Content	• Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable
Environment	• Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing
