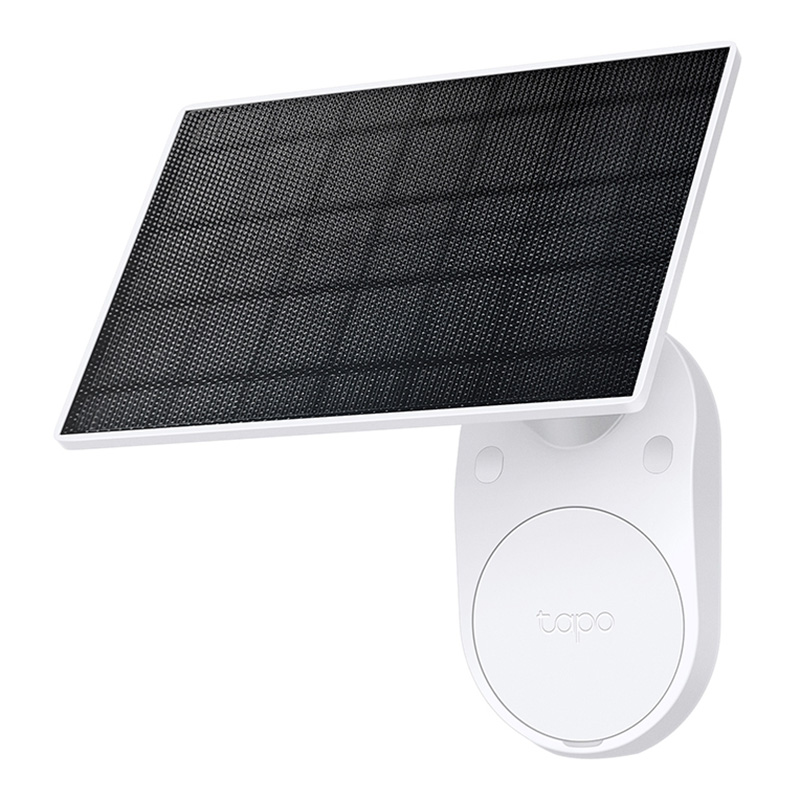

TP-Link Tapo A201 Solar Panel (Tapo A201)

Device Compatibility

Works with Tapo C400, Tapo C410, Tapo C420, Tapo C425 and more.

Check all supported models

Connection Capacity

A solar panel can only connect to one camera.

Output Port

Type-C

*A Type-C to Micro USB adapter (Included) is required for a camera with a Micro USB charging port.

POWER

Power Source

Sunlight

Output Voltage

Solar Panel Max Charging Voltage: 5.2 V

Solar Panel Max Charging Power: 2.5 W

Power Cord Length

Solar Panel Charging Cable Length: 0.25m

Solar Panel Extension Charging Cable Length: 3.8m

GENERAL

Weather Resistance

IP65

Mounting Options

Wall-Mounted　

Operating Temperature

-20°C~45°C (-4°F~113°F)

*The suitable temperature for Tapo A201 is -20℃~45℃. The working temperature range for battery charging should be maintained at 0℃~45℃.

Storage Temperature

-40℃~60℃ (-40°F~140°F)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH, Non-condensing

Dimensions

173.42 × 120.42 × 15.7 mm (6.83 × 4.74 × 0.62 in)

Package Contents

Tapo A201 Solar Panel ×1

Adjustable Mounting Bracket ×1

Mounting Screws ×6

Mounting Anchors ×6

Base Cover ×1

Waterproof Gaskets ×6

Screw Caps ×2

Cable Zip Tie×1

Extension Wire ×1

Type-C to Micro USB Adapter ×1

Mounting Template ×2

Quick Start Guide

Certifications

CE, FCC, RoHS, RCM
