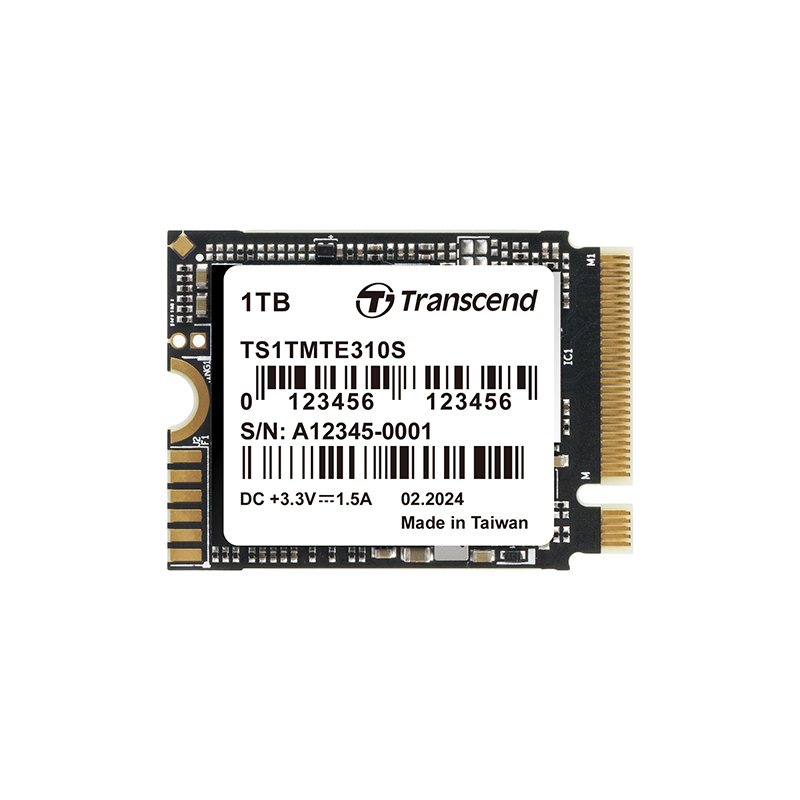

1TB M.2 2230 NVMe PCIe Gen4 x4 SSD with 3D NAND. Sequential up to 5,000/3,500 MB/s, random up to 330k/690k IOPS. 600 TBW, 0.33 DWPD (5 yr), 2M‑hour MTBF, 3.3 V, 30×22×2.38 mm, 4 g.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Type
M.2 2230
Dimensions
30.0 mm x 22.0 mm x 2.38 mm (1.18" x 0.87" x 0.09")
Weight
4 g (0.14 oz)
Bus Interface
NVMe PCIe Gen4 x4
Flash Type
3D NAND flash
Capacity
1TB
Operating Temperature
0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Sequential Read/Write (CrystalDiskMark)
Up to 5,000/3,500 MB/s
4K Random Read/Write (IOmeter)
Up to 330,000/690,000 IOPS
Terabytes Written (TBW)
600 TBW
Mean Time Between Failures (MTBF)
2,000,000 hour(s)
Drive Writes Per Day (DWPD)
0.33 (5 yrs)
Certificate
CE/UKCA/FCC/BSMI/KC/RCM
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Technology
S.M.A.R.T.
Advanced Garbage Collection
LDPC Coding
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
