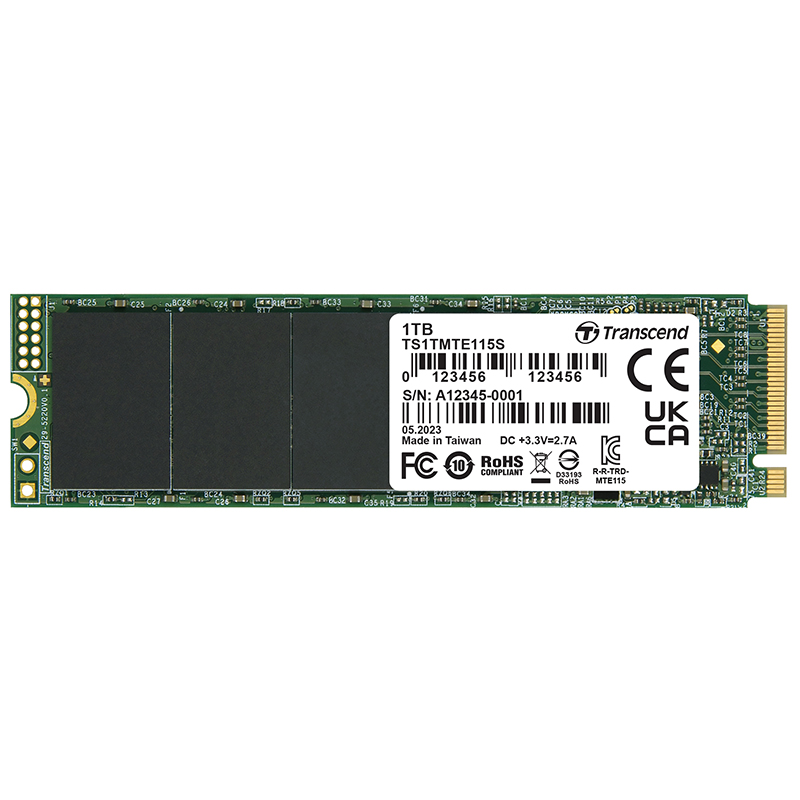

1TB M.2 2280 NVMe SSD, PCIe Gen3 x4, 3D NAND, up to 3,200/2,000 MB/s sequential, 250k/170k IOPS random, 400 TBW, 2 Mhr MTBF, 0.2 DWPD, 0‑70 °C, 3.3 V.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
APPEARANCE
Type
M.2 2280
INTERFACE
Bus Interface
NVMe PCIe Gen3 x4
STORAGE
Flash Type
3D NAND flash
Capacity
1TB
OPERATING ENVIRONMENT
Operating Temperature
0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
PERFORMANCE
Sequential Read/Write (CrystalDiskMark)
Up to 3,200/2,000 MB/s
4K Random Read/Write (IOmeter)
Up to 250,000/170,000 IOPS
Terabytes Written (TBW)
400 TBW 500 GB200 TBW
Mean Time Between Failures (MTBF)
2,000,000 hour(s)
Drive Writes Per Day (DWPD)
0.2 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
SYSTEM REQUIREMENT
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage.
