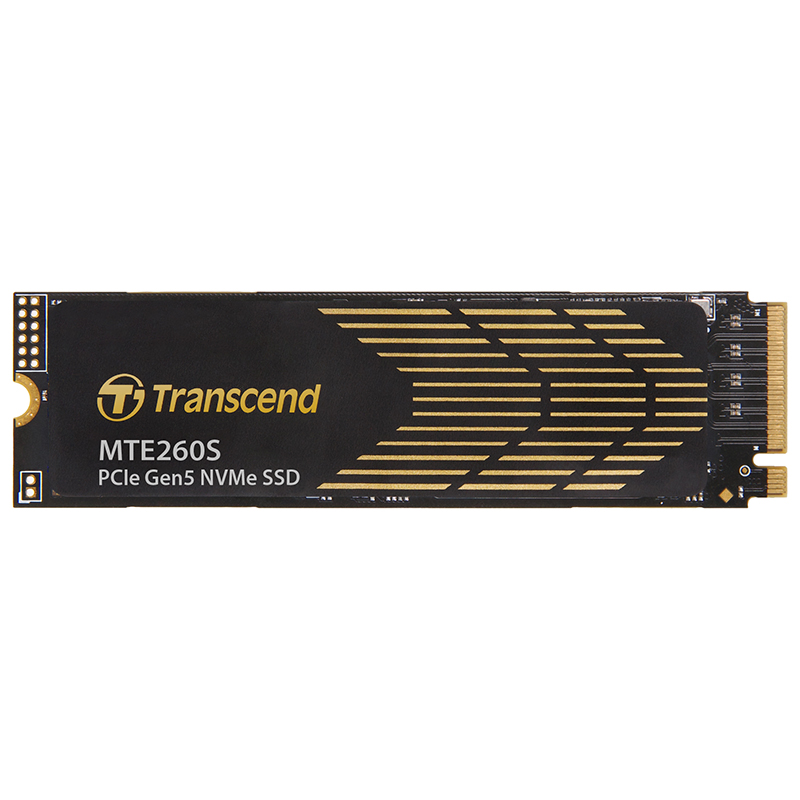

Transcend 1TB TS1TMTE260S NVMe PCIe Gen5 M.2 2280 SSD

Dimensions

80 mm x 22 mm x 3.77 mm (3.15" x 0.87" x 0.15")

Weight

10 g (0.35 oz)

Heatsink Type

Graphene heatsink

Bus Interface

NVMe PCIe Gen5 x4

Flash Type

3D NAND flash

Capacity

1 TB

Operating Temperature

0°C (32°F) ~ 70°C (158°F)

Operating Voltage

3.3V±5%

Sequential Read/Write (CrystalDiskMark)

Up to 14,000/9,800 MB/s

4K Random Read/Write (IOmeter)

Up to 1,300,000/1,000,000 IOPS

Terabytes Written (TBW)

750 TBW

Mean Time Between Failures (MTBF)

2,000,000 hour(s)

Drive Writes Per Day (DWPD)

0.411 (5 yrs)

Operating System

Microsoft Windows 7 or later

Linux Kernel 2.6.31 or later

Technology

S.M.A.R.T.

Advanced Garbage Collection

RAID Engine

LDPC Coding

DRAM Cache

Notes

• Speed may vary due to host hardware, software, usage, and storage capacity.

• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

• Terabytes Written (TBW) expresses the endurance under the highest capacity.

• Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

• Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage.
