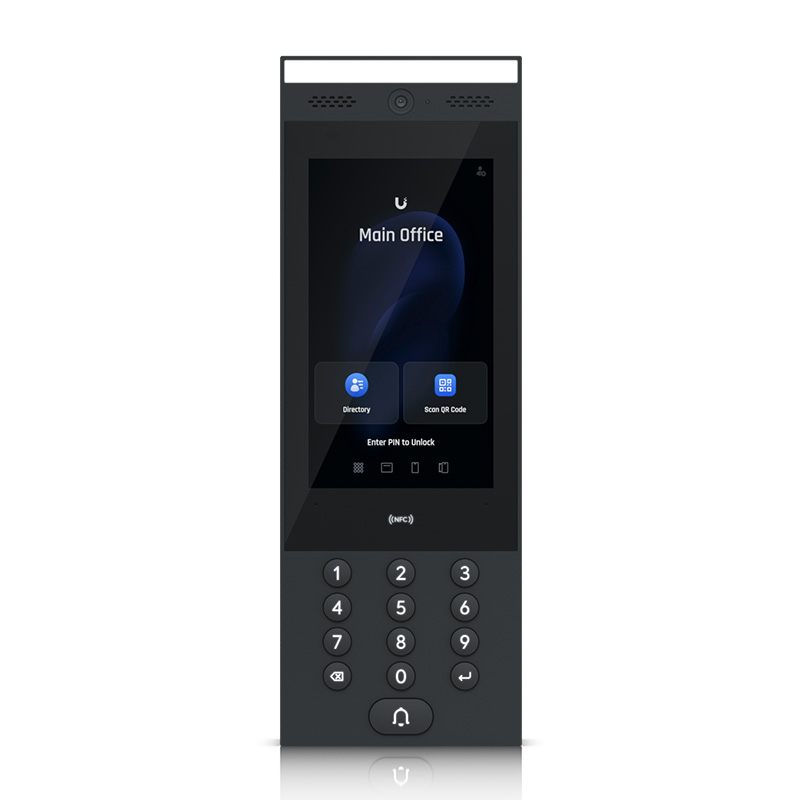

Ubiquiti Indoor/Outdoor Intercom Terminal (NHU-UA-INTERCOM)

Dimensions

324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")

Integrated Camera

✓

NFC Card & Keyfob Access

✓

PIN Access

✓

Mobile Unlock

✓

Two-Way Intercom & Doorbell Access

✓

NDAA Compliant

✓

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weatherproofing

IP65

MECHANICAL

Weight

Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)

Enclosure Material

Aluminum alloy, UV-stabilized polycarbonate, glass

Mount Material

Powder-coated stainless steel

Mounting

Wall mount, adapter to the gooseneck pedestal (Included)

HARDWARE

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

13W

Supported Voltage Range

48V DC

Sensors

Proximity sensor ALS sensor

Display

177 mm (7") diagonal

Touch Screen Technology

Capacitive multi-touch

Display Luminance

Max. 1000 nits (Typical)

Screen Orientation

Portrait

Resolution

1024 x 600 px

Microphone

✓

Speaker

✓

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18'')

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T

LEDs

Amber

Buttons

(1) Factory-reset

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or   riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Intercom, V01

SOFTWARE

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com
