SPECIFICATIONS:
OVERVIEW |

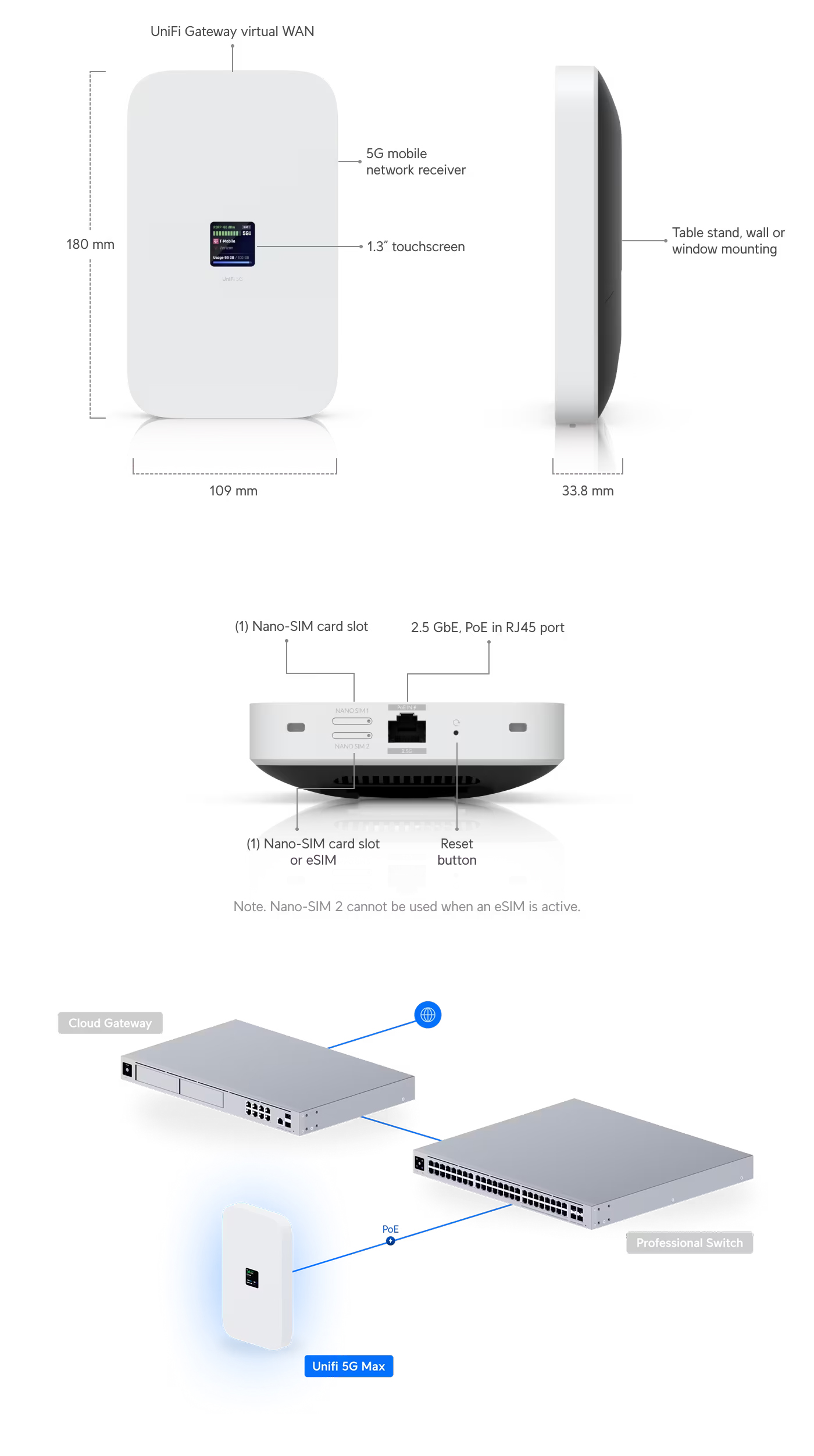

| Dimensions | 180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3") | Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio | SIM | (1) Nano SIM (1) Nano-SIM or eSIM | PoE Interface | (1) PoE input | Mounting | Desktop stand, wall, window mount (Included) | Tamper Resistance | IK04 | MECHANICAL |
| Weight | Device: 410 g (14.5 oz) Stand: 215 g (7.6 oz) Wall mount: 7.6 g (0.3 oz) Window mount: 20 g (0.7 oz) | Enclosure Material | Polycarbonate, aluminum alloy | Mount Material | Polycarbonate, silicone rubber | HARDWARE |
| Management | Ethernet | 5G NR | Category: 5G NR Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 Max. TX Power: HPUE power class 2: 26 dBm | 4G LTE | Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 Max. TX Power: HPUE power class 2: 25 dBm | 3G UMTS | Frequency Bands: B1, B2, B4, B5, B8, B19 | Peak Data Speed | 5G NSA Downlink 3.4 Gbps Uplink 560 Mbps 5G SA Downlink 1.8 Gbps Uplink 650 Mbps 4G LTE Downlink 1.6 Gbps Uplink 210 Mbps | Antennas | Type: (4) Embedded cellular antennas | Max. Power Consumption | 14.5W | Power Method | PoE | Display | 1.3" touchscreen | Buttons | (1) Factory-reset | Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) | Ambient Operating Humidity | 5 to 95% noncondensing | NDAA Compliant | ✓ | Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon |
|
| Software | Application Requirements | UniFi Network | Version 10.0.162 and later |
|
